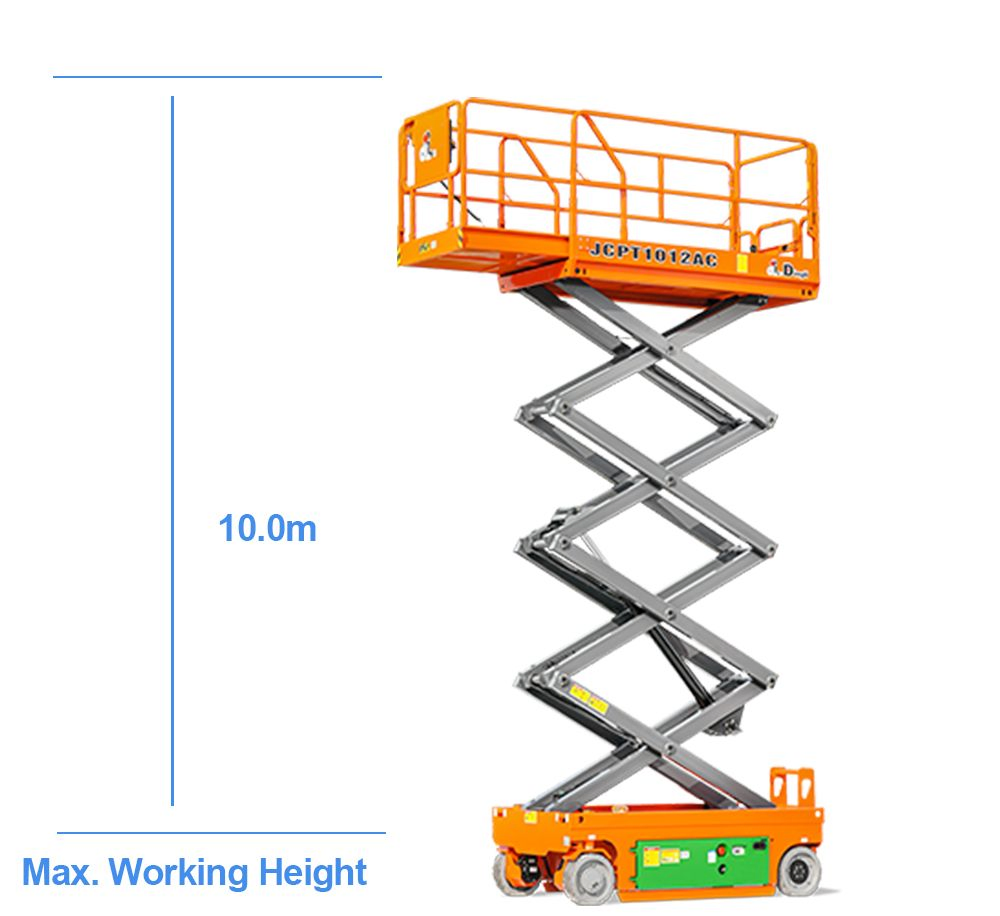

Chinese Famous Brand 10m Lift Height Electric Mobile Hydraulic Scissor Lift Jcpt1012AC
Chinese Famous Brand 10m Lift Height Electric Mobile Hydraulic Scissor Lift Jcpt1012AC
Chinese Famous Brand 10m Lift Height Electric Mobile Hydraulic Scissor Lift Jcpt1012AC
Chinese Famous Brand 10m Lift Height Electric Mobile Hydraulic Scissor Lift Jcpt1012AC
Chinese Famous Brand 10m Lift Height Electric Mobile Hydraulic Scissor Lift Jcpt1012AC
1 / 5
Chinese Famous Brand 10m Lift Height Electric Mobile Hydraulic Scissor Lift Jcpt1012AC
Chinese Famous Brand 10m Lift Height Electric Mobile Hydraulic Scissor Lift Jcpt1012AC
Chinese Famous Brand 10m Lift Height Electric Mobile Hydraulic Scissor Lift Jcpt1012AC
Chinese Famous Brand 10m Lift Height Electric Mobile Hydraulic Scissor Lift Jcpt1012AC
Chinese Famous Brand 10m Lift Height Electric Mobile Hydraulic Scissor Lift Jcpt1012AC

Chinese Famous Brand 10m Lift Height Electric Mobile Hydraulic Scissor Lift Jcpt1012AC

Customization: Available
After-sales Service: Provide
Warranty: Provide
Send Inquiry

Product Description

Basic Specifications
Model NO.
JCPT1012AC
Lift Mechanism
Scissor Lift
Max. Working Height
10m
Max. Platform Height
8m
Safe Working Load
450kg
Driven Type
AC (Battery)
Overall Weight
2750kg
Certification
CE
Product Description

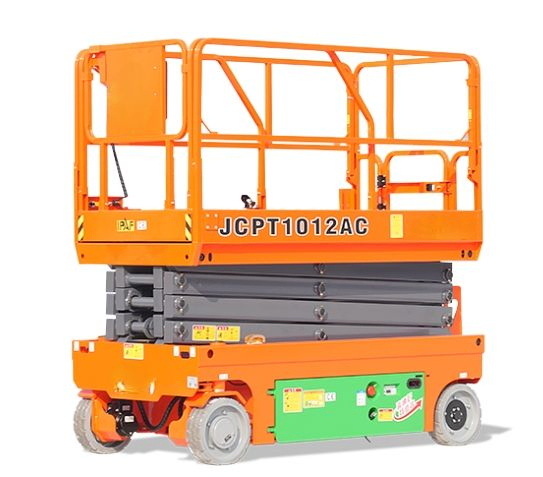

10m Lift Height Electric Mobile Hydraulic Scissor Lift JCPT1012AC
This battery-driven scissor lift is equipped with a fully sealed AC system (drive and lift), replacing traditional DC systems. It is maintenance-free, highly waterproof, more efficient, and safer for various industrial applications.

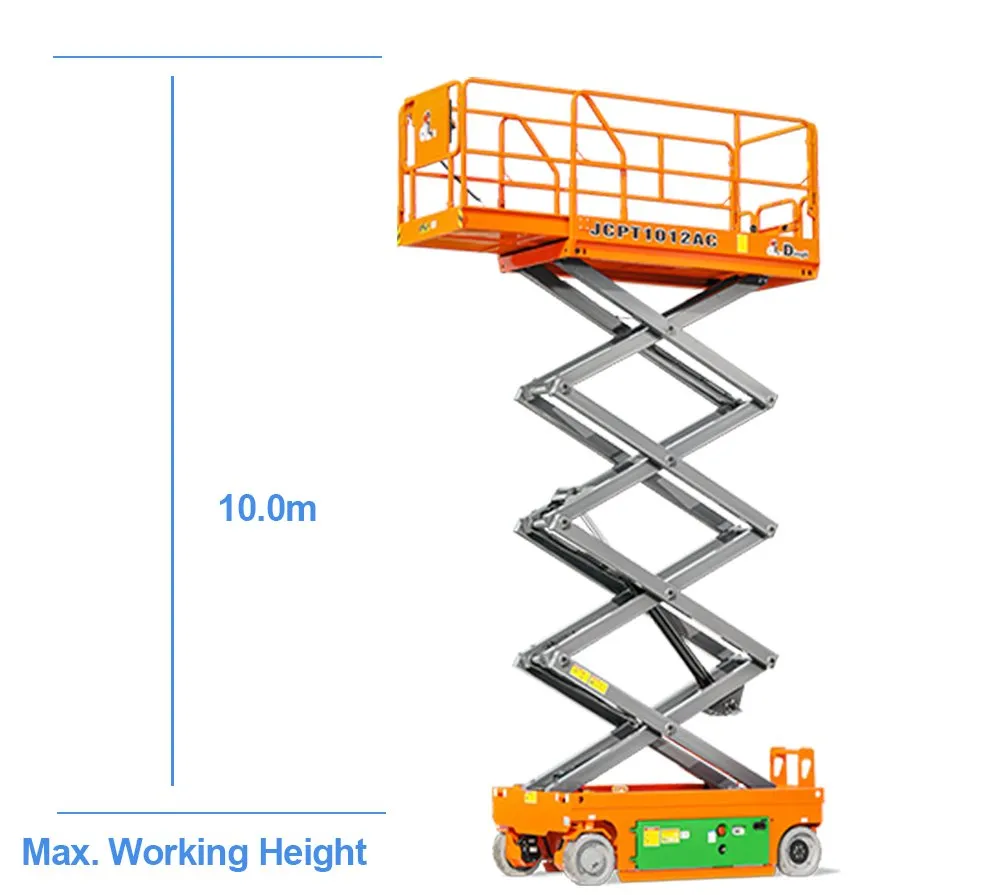

Scissor Lift JCPT1012AC View 1
Scissor Lift JCPT1012AC View 2
Key Features & Standard Items:
  • Proportional Joystick Controls
  • Automatic Pothole Protection System
  • One-Way Platform Extension Deck
  • Drivable At Full Height
  • Non-Marking Tyres
  • Emergency Descent & Braking System
  • Onboard Fault Diagnostic System
  • Tilt & Motion Alarms with Horn
  • Foldable Guard Rails
  • Platform Load Sense System
Technical Specifications
Max. Working Height10m
Max. Platform Height8m
Overall Length (With Ladder)2.48m
Overall Width1.15m
Overall Height (Rails Up)2.36m

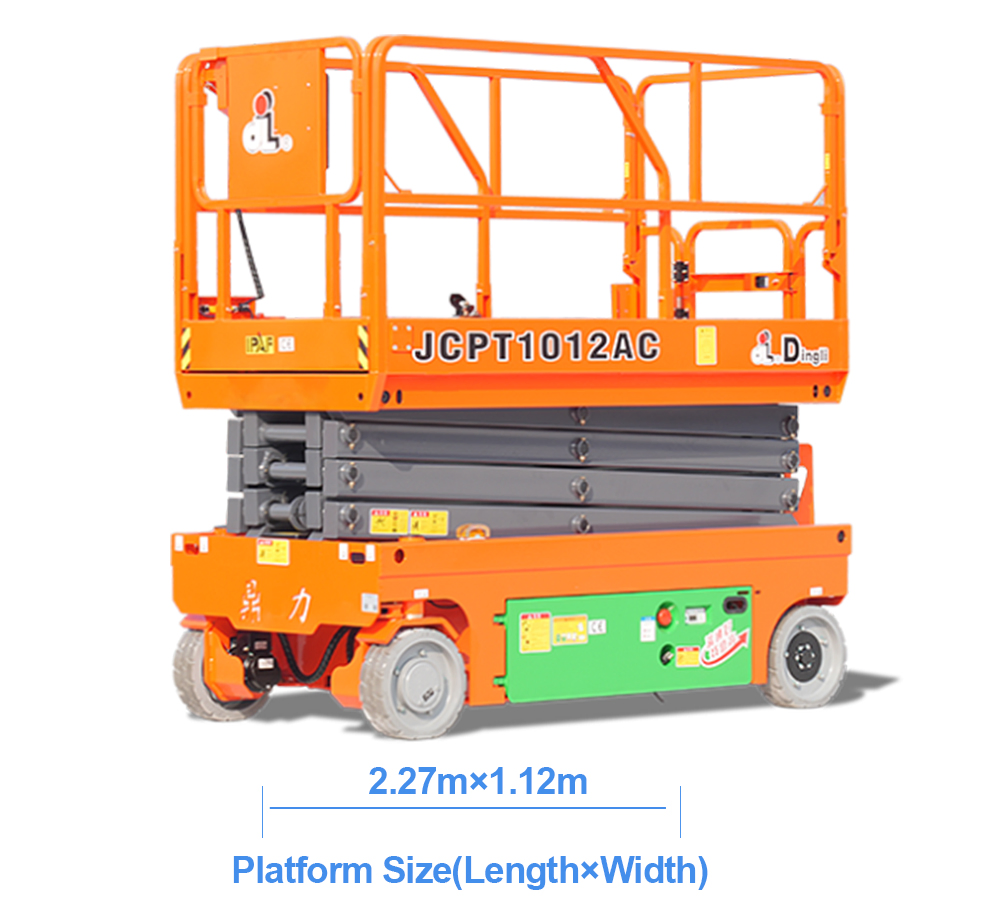

Platform Size (Length×Width)2.27m×1.12m
Ground Clearance (Stowed/Raised)0.10m/0.019m
Turning Radius (Inside/Outside)0m/2.20m
Travel Speed (Stowed)5km/h
Gradeability25%
Max. Occupants (Indoor/Outdoor)2/2
Product Display & Video

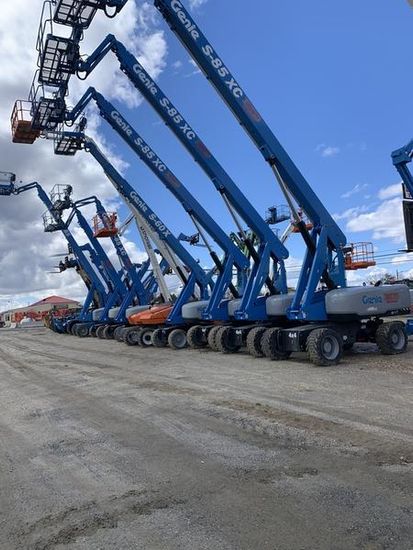

Video Cover
Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
Frequently Asked Questions
What is the maximum working height of the JCPT1012AC?
The JCPT1012AC offers a maximum working height of 10 meters and a platform height of 8 meters.
What is the load capacity for this scissor lift?
The safe working load (S.W.L) is 450kg, and the extension deck can handle up to 113kg.
Is the drive system maintenance-free?
Yes, it features a fully sealed AC system for both driving and lifting, which is maintenance-free and more waterproof than traditional DC systems.
Can it be used by more than one person?
Yes, the platform is designed to accommodate up to 2 occupants for both indoor and outdoor operations.
What safety systems are included?
It includes an automatic pothole protection system, tilt and motion alarms, emergency descent system, and a platform load sense system for maximum safety.
What are the dimensions of the platform?
The standard platform size is 2.27m x 1.12m, with an additional 0.90m extension available via the extension deck.
