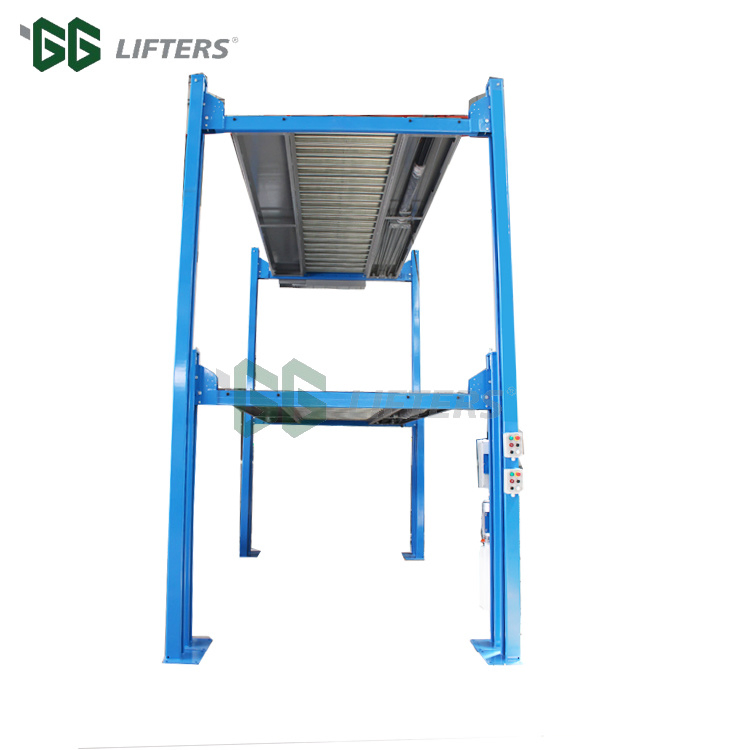

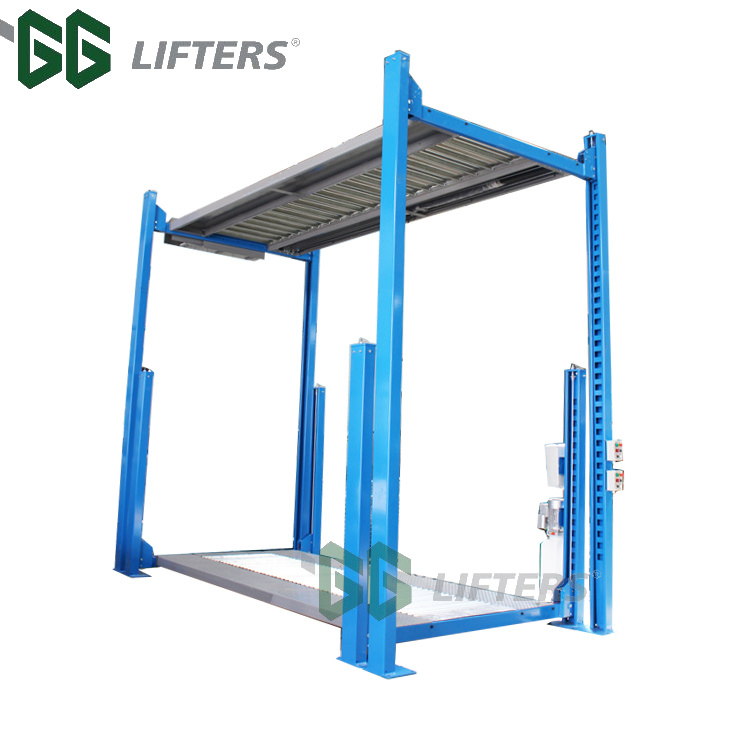

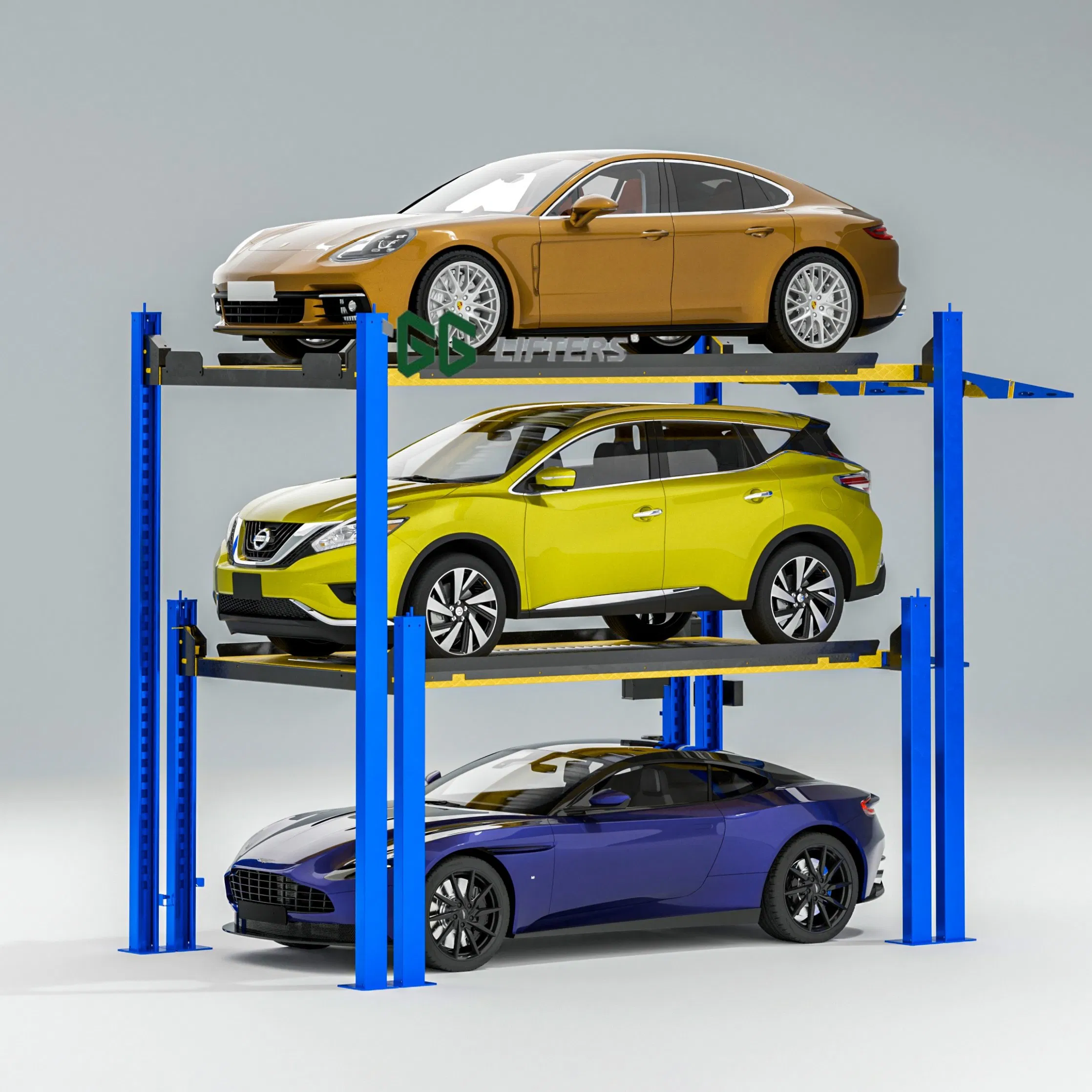

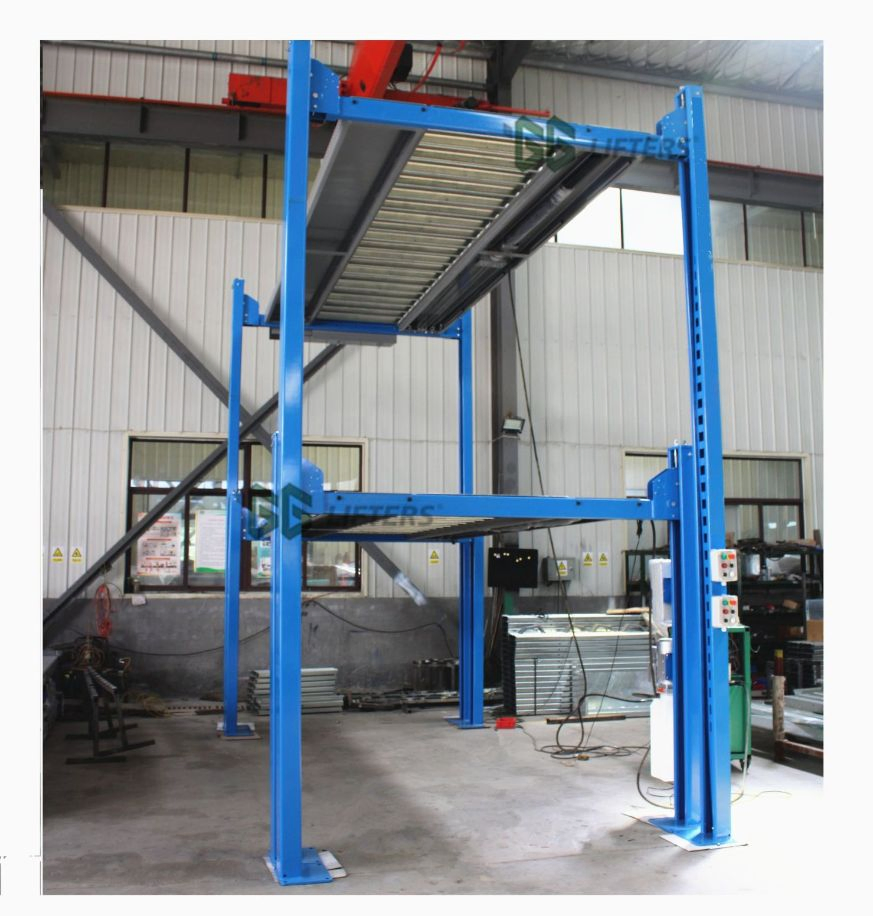

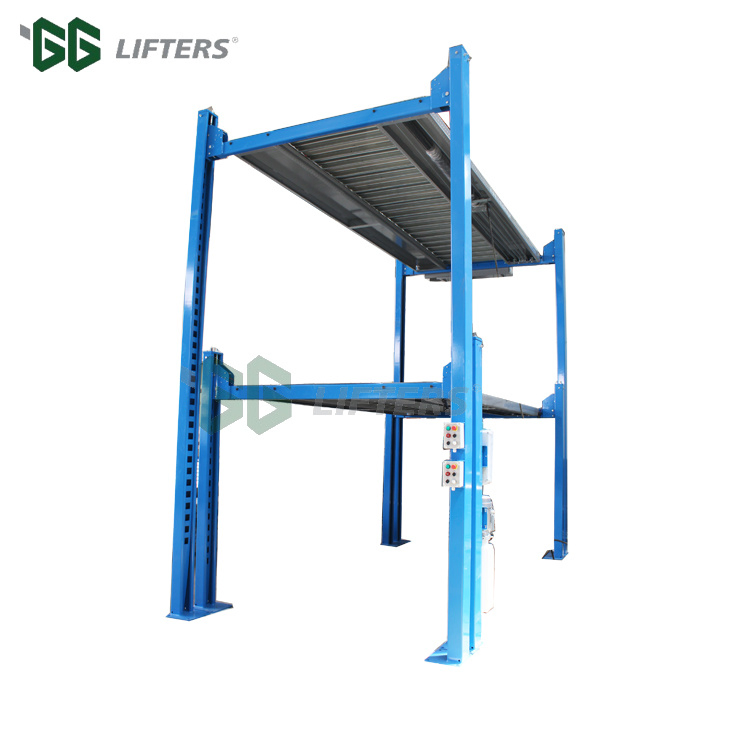

Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
1 / 5
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System
Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System

Hydraulic Lift 3 Level Car Vehicle Elevator Platform Triple Stacker Parking System

Customization: Available
Parking Post: 1-8 Posts
Level: 2-4 Levels
Send Inquiry

Product Description

Technical Specifications
Model NO.
PEP54/3500
Capacity
3600 kg + 2700 kg (Customizable)
Material
High-strength Steel
Installation
Indoor & Outdoor
Lifting Height
Customizable
Safety Locks
Double Automatic Safety Locks
Operation
Electric with Operation Panel
Vehicle Compatibility
Sedans, SUVs
Motor Capacity
2.2 Kw x 2 Units

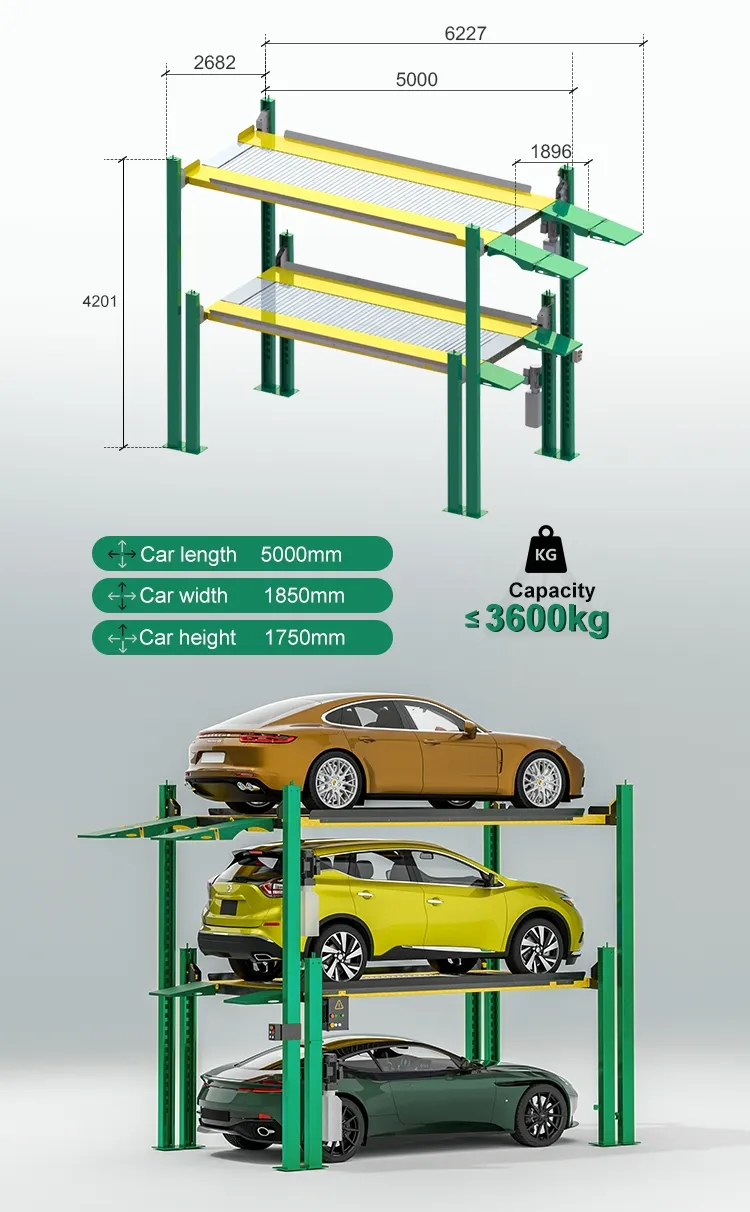

Dimensions
6227 * 2682 * 4201 mm
Product Highlights
◈
Dual 4-post parking system configuration, featuring integrated external and internal lift units.
◈
Advanced hydraulic driven cylinder combined with a wire rope lifting system and precision sheaves.
◈

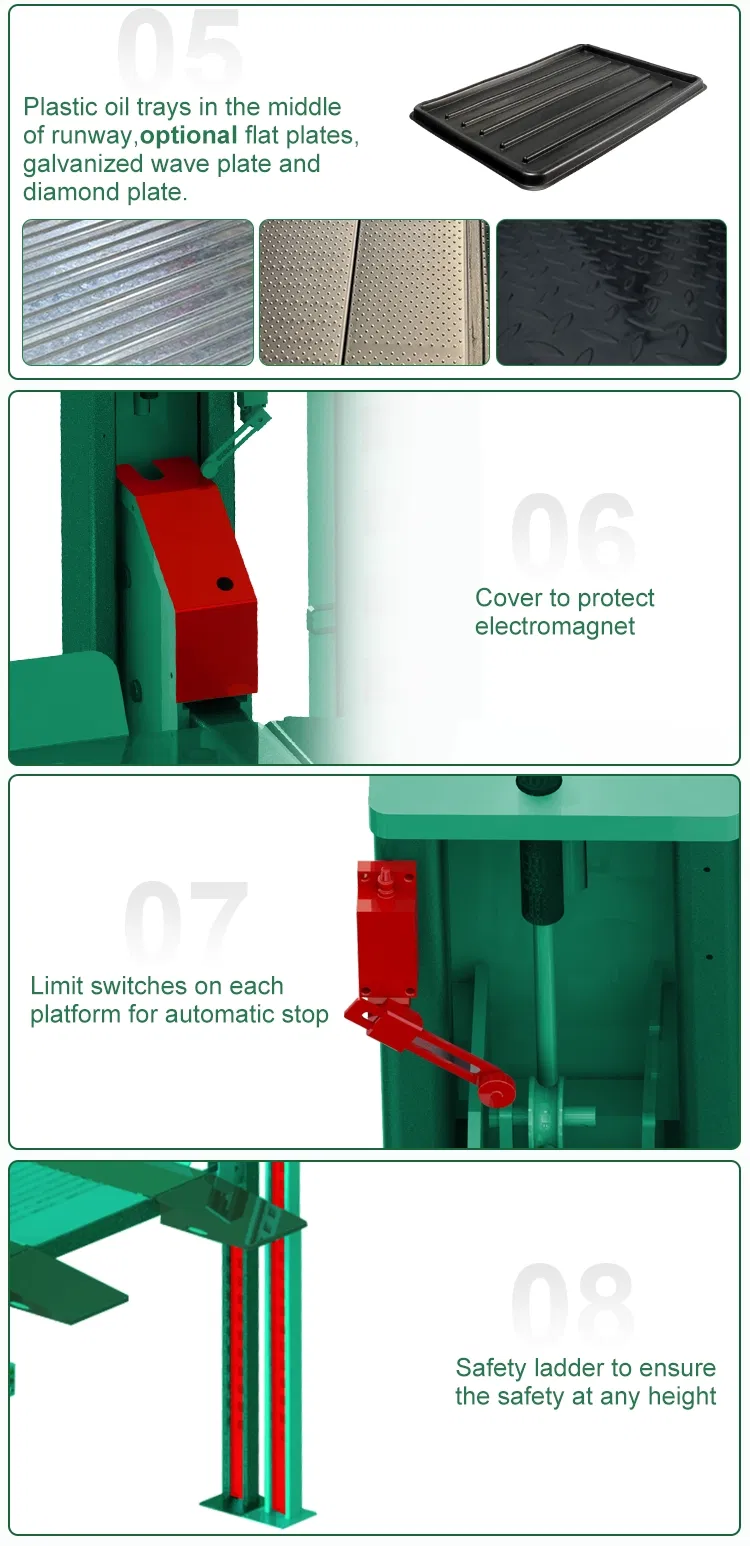

Enhanced safety: Primary adjustable lock ladder and a secondary automatic activation system for wire rupture protection.
◈
Space-efficient foldable ramps, specifically designed to accommodate sports cars with low clearance.
◈
Electromagnetic lock release mechanism for seamless operation via push-button control.
◈
Independent control panels and hydraulic power units for both internal and external lifts.
◈
Superior finish: Steel components are sandblasted, anti-corrosion primed, and finished with a high-quality top coat.
Product Gallery
3 Level Car Stacker Hydraulic Triple Parking System Car Elevator Platform
Technical Parameters
Model No.PEP54/1800
Lifting Capacity2700 kg per platform (5400 kg total)
Lifting Height1800mm + 1800mm
Driven TypeHydraulic Driven
Lower Platform Size4200 x 1986 mm
Upper Platform Size4780 x 1986 mm
Lock ReleaseElectromagnetic Release
Safety Protection4 Plastic oil trays included in middle runway
Ramp TypeFoldable Ramps

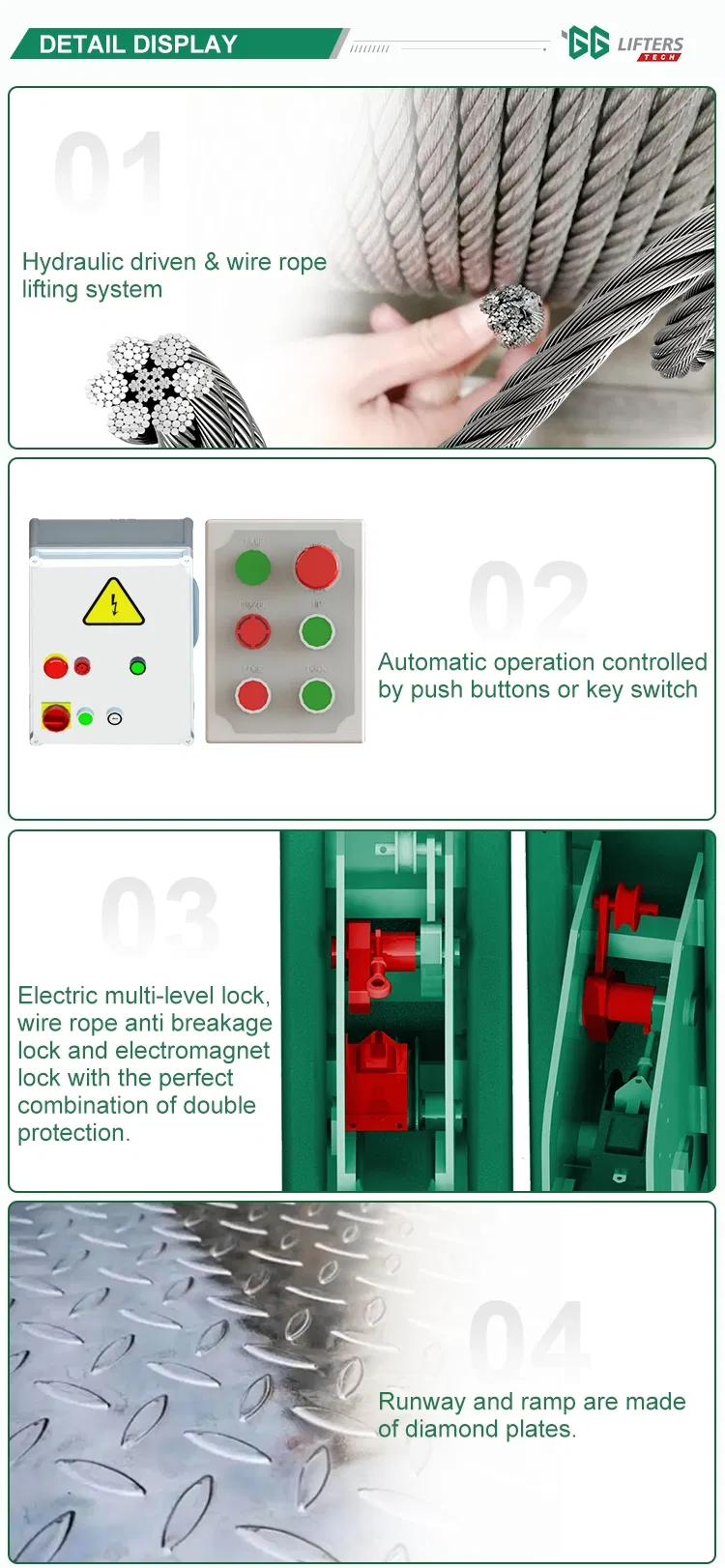

Parking Lift Detail Safety Mechanism Control System
Structure Layout Platform View Base Construction

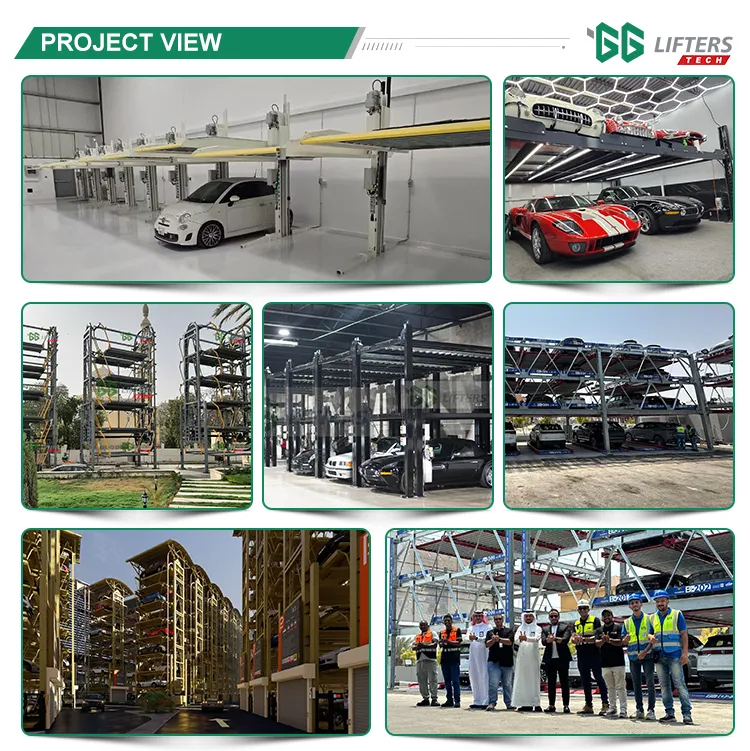

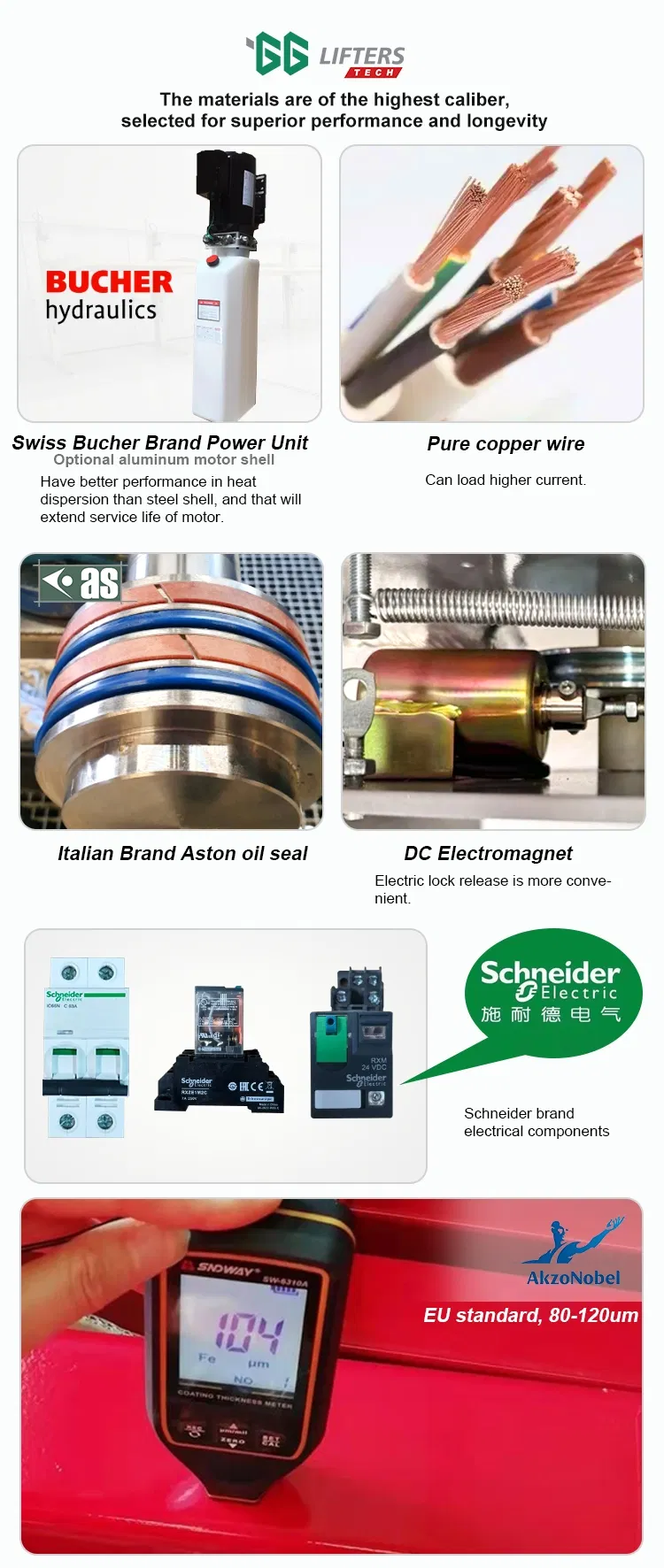

Hydraulic Unit Finished Installation
Frequently Asked Questions
Can the parking lift be customized for specific dimensions?
Yes, we provide customized solutions. Our professional engineers design products according to your specific requests and space requirements.
How is the quality of the production controlled?
We utilize independent QC engineers who perform rigorous inspections during all production phases, including full testing of finished products before shipping.
What is the standard lead time for a parking system?
Commonly, the lead time for our machines is approximately 2 to 3 weeks from order confirmation.
What kind of warranty is provided?
Our products come with a 2-year warranty against manufacturing defects to ensure long-term reliability.
Are these lifts suitable for both indoor and outdoor use?
Yes, the systems are built with sandblasted steel and anti-corrosion coatings, making them suitable for both indoor and outdoor installations.
What are the accepted payment terms?
We accept various payment methods including TT (Telegraphic Transfer) and LC (Letter of Credit).
