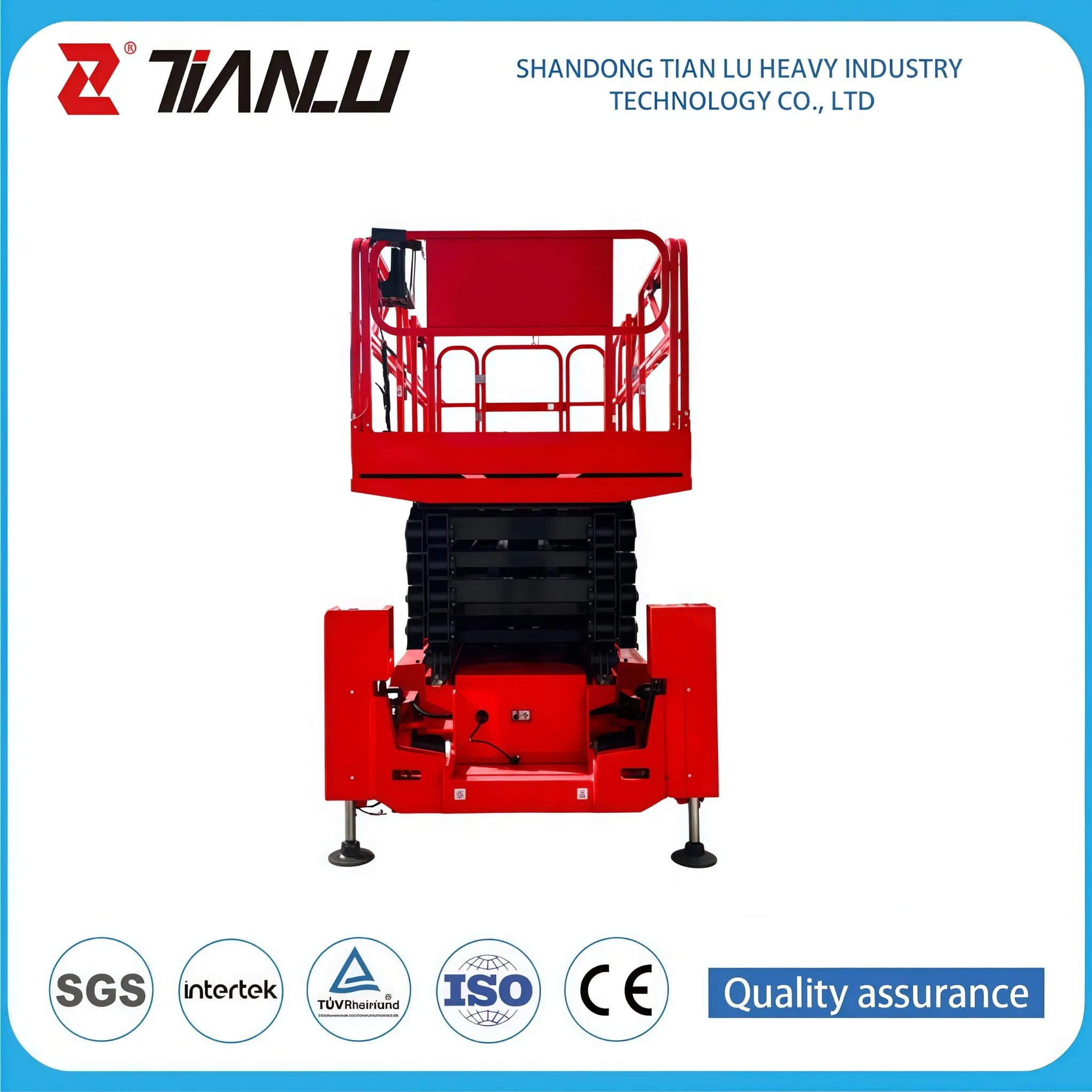

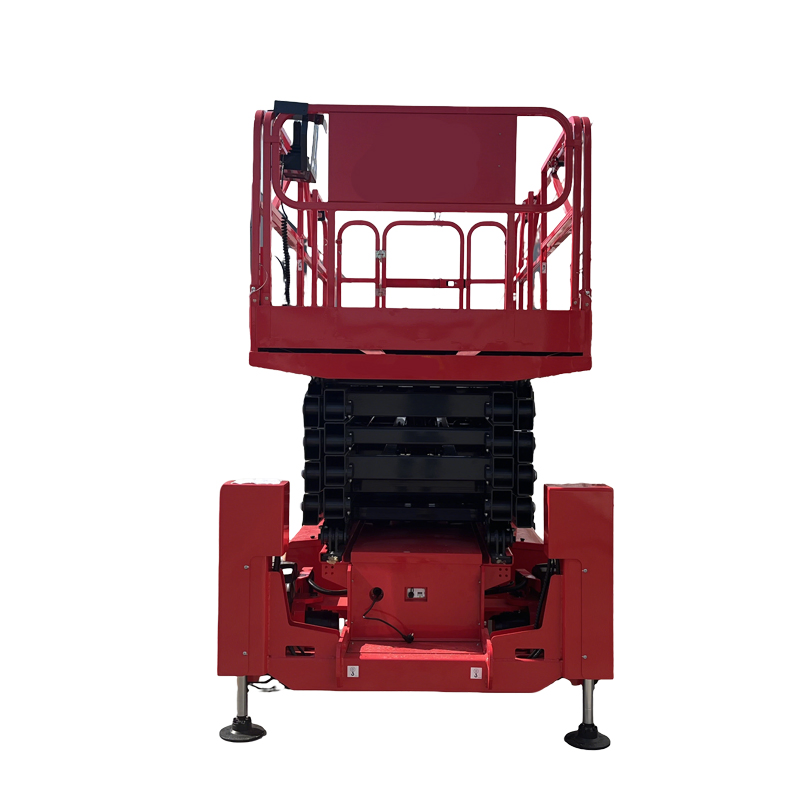

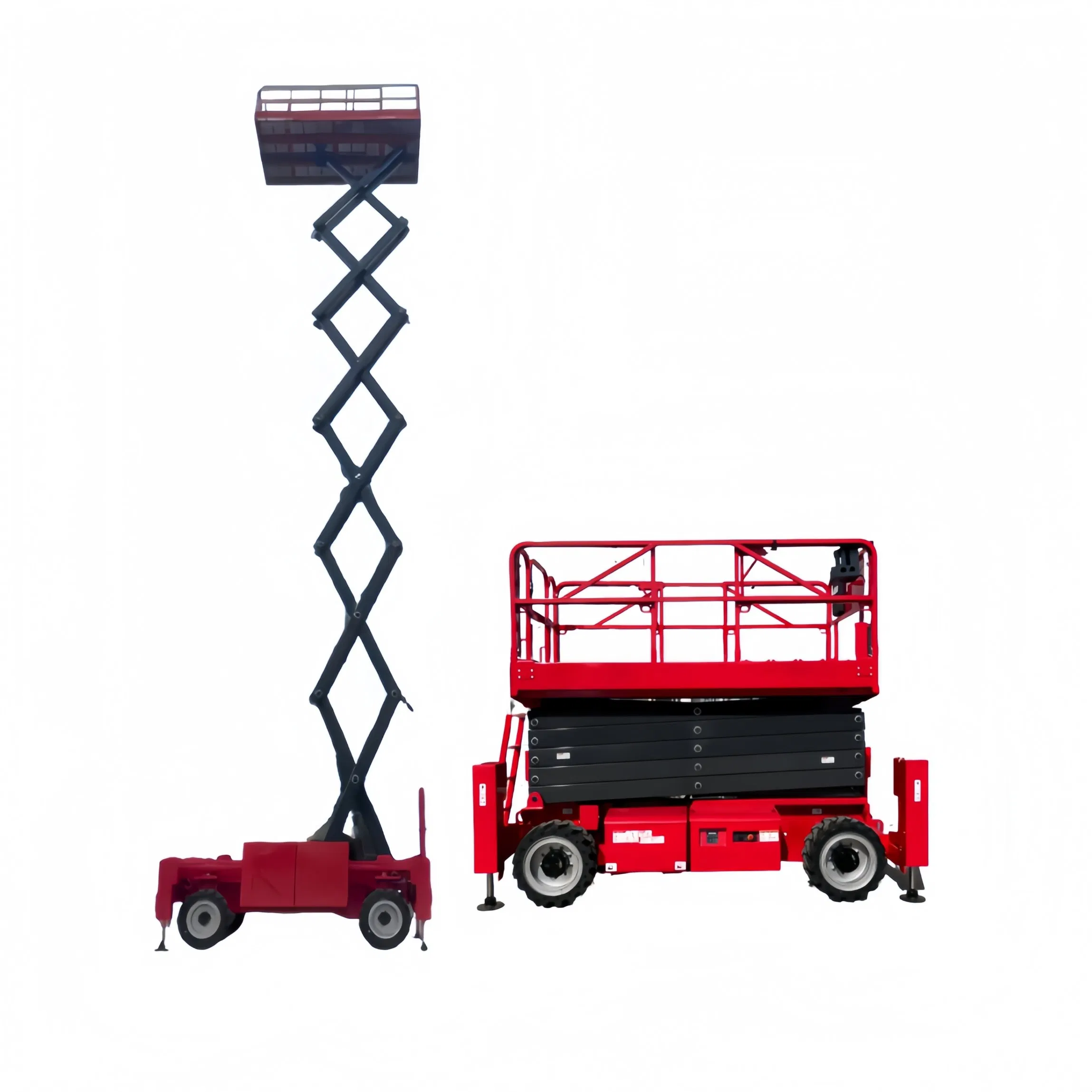

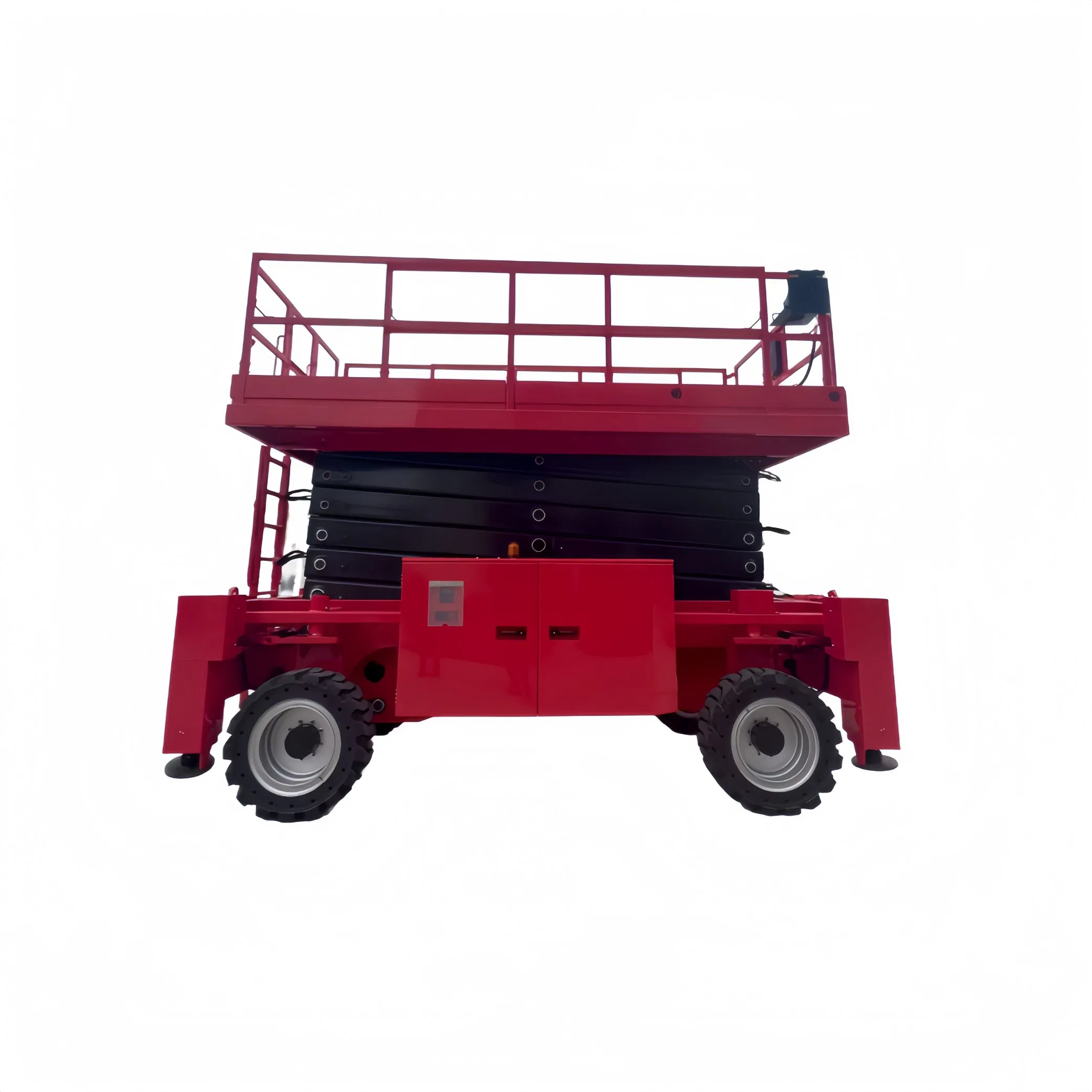

Self Propelled Rough Terrain Hydraulic Scissor Lift Work Platform
Self Propelled Rough Terrain Hydraulic Scissor Lift Work Platform
Self Propelled Rough Terrain Hydraulic Scissor Lift Work Platform
Self Propelled Rough Terrain Hydraulic Scissor Lift Work Platform
Self Propelled Rough Terrain Hydraulic Scissor Lift Work Platform
1 / 5
Self Propelled Rough Terrain Hydraulic Scissor Lift Work Platform
Self Propelled Rough Terrain Hydraulic Scissor Lift Work Platform
Self Propelled Rough Terrain Hydraulic Scissor Lift Work Platform
Self Propelled Rough Terrain Hydraulic Scissor Lift Work Platform
Self Propelled Rough Terrain Hydraulic Scissor Lift Work Platform

Self Propelled Rough Terrain Hydraulic Scissor Lift Work Platform

Customization: Available
After-sales Service: Lifetime After-Sales Service
Warranty: 12 Months or 2000 Hours
Send Inquiry

Product Description

Basic Information
Model NO.
TRPT1218RT
Application
Workshop, Warehouse, Building Crane
Lift Mechanism
Telescoping Lift
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
AC
Certification
GS, CE, ISO 9001
Platform Capacity
360kg
Gradeability
45% - 50%
Origin
China
High-Performance Scissor Lift
The fully self-propelled scissor-type aerial work platform is a rechargeable lifting device designed for efficiency and safety. Workers operate the handle controller directly from the platform to move, turn, and lift. Its scissor mechanical structure ensures high stability, a wide working platform, and high load-bearing capacity, enabling multiple people to work simultaneously. Equipped with safety protection devices for overloading and tilt alarms, it complies with international standards for mobile lifting platforms.
Key Applications & Configurations
Applications: Warehouse logistics, high-level storage picking, construction renovation, facility management, and telecommunications maintenance.
Configurations: AC Electric Drive, Proportional Joystick Control, 4x6V/200Ah Batteries, Solid Non-Marking Tires, and High-Strength Steel Scissors.

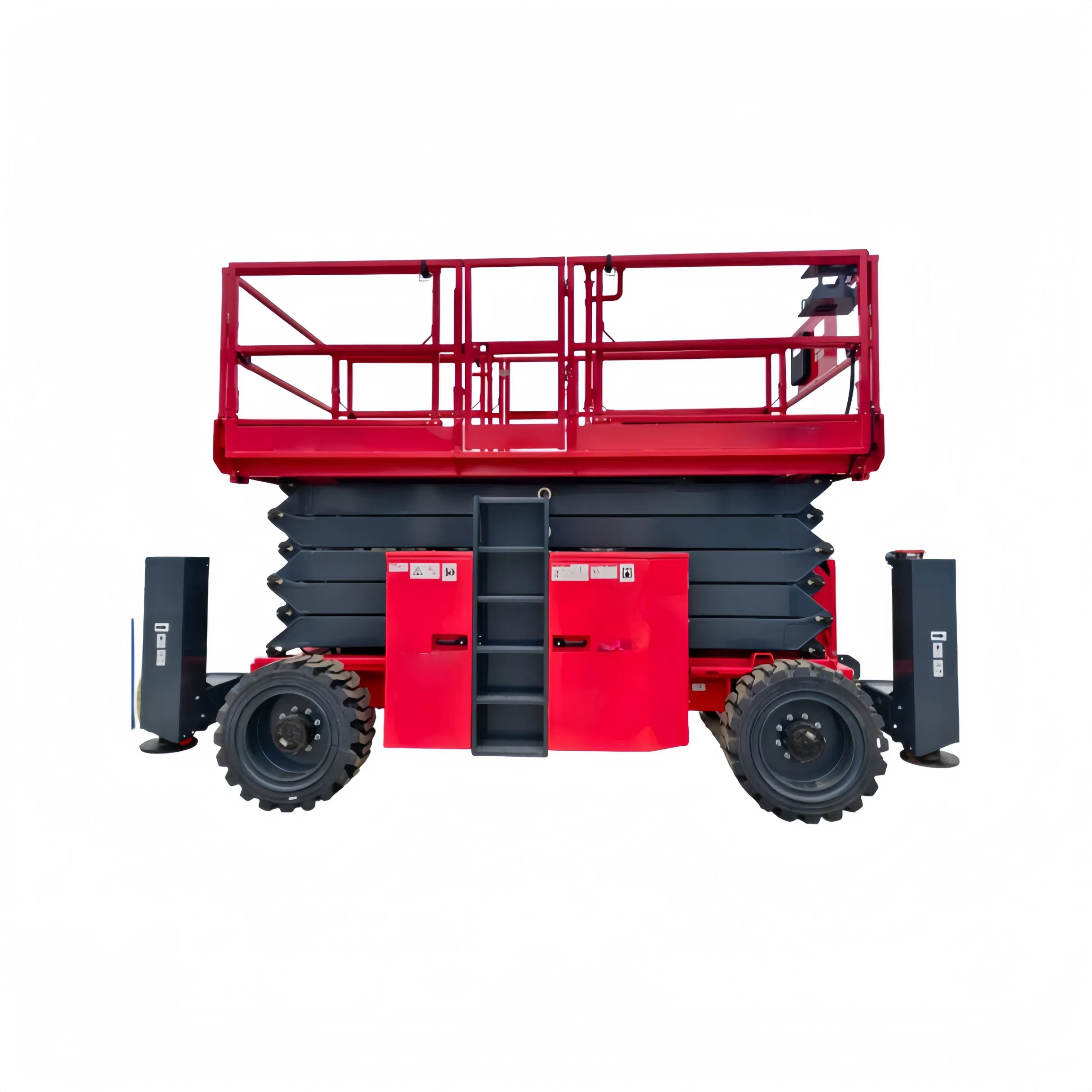

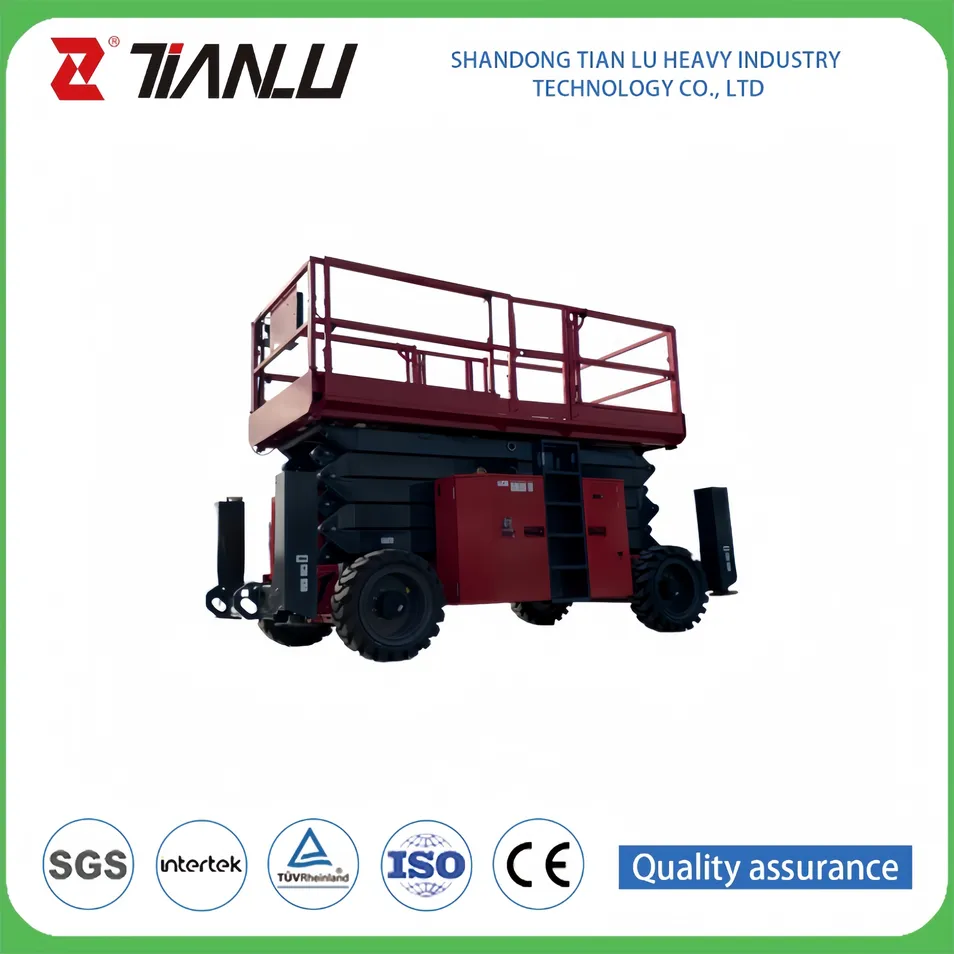

Self Propelled Rough Terrain Scissor Lift
Technical Specifications

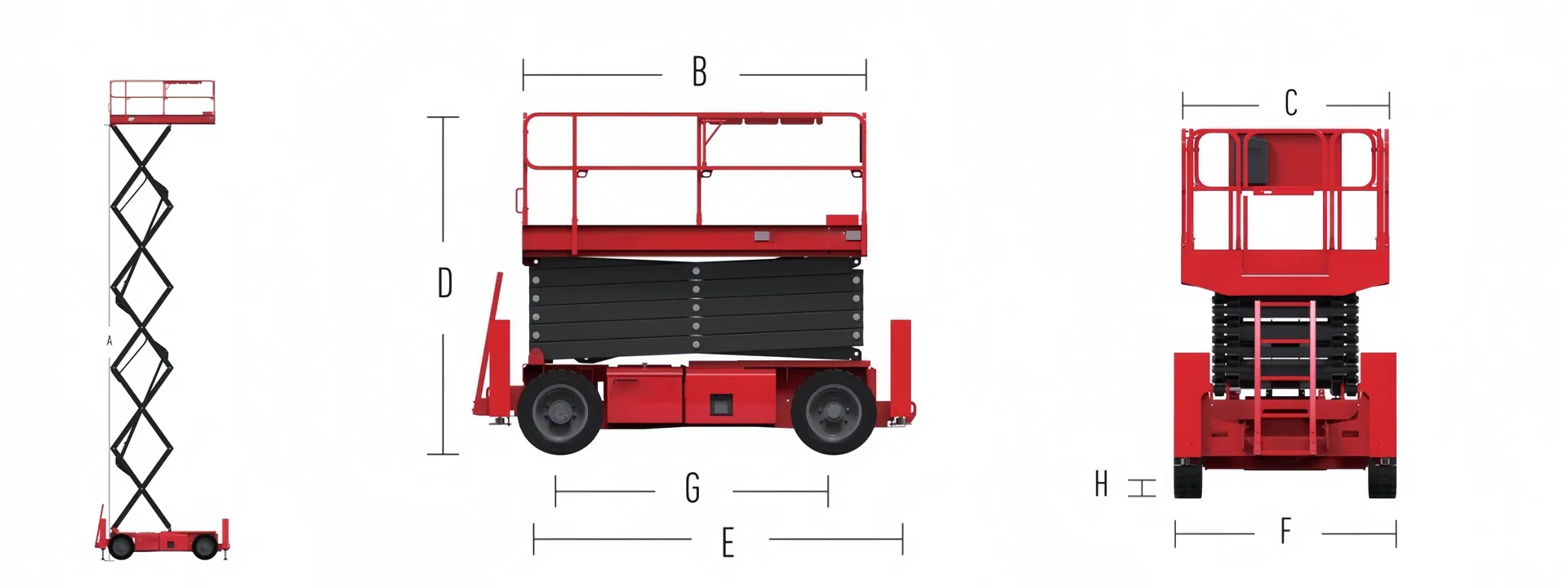

Technical Specs Diagram
Category Item Value
Model SpecsMax. Working Height14m
Max. Platform Height12m
Platform Size (L*W)2.92m * 1.65m
Overall Width1.75m
Overall Weight5730kg
PerformancePlatform Capacity360kg
Max. Drive Speed (Stowed)4.8km/h
Gradeability45% - 50%
Turning Radius (Out)4.88m
Max. Wind Speed12.5m/s
PowerBatteries (V/Ah)8×6V - 370Ah
Charger100-240V AC / 13.5A
Work Platform Details
Professional Manufacturing & Quality

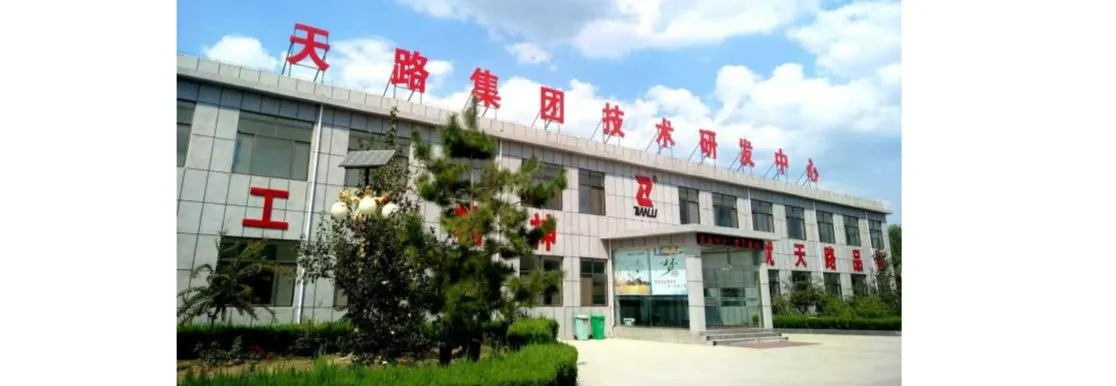

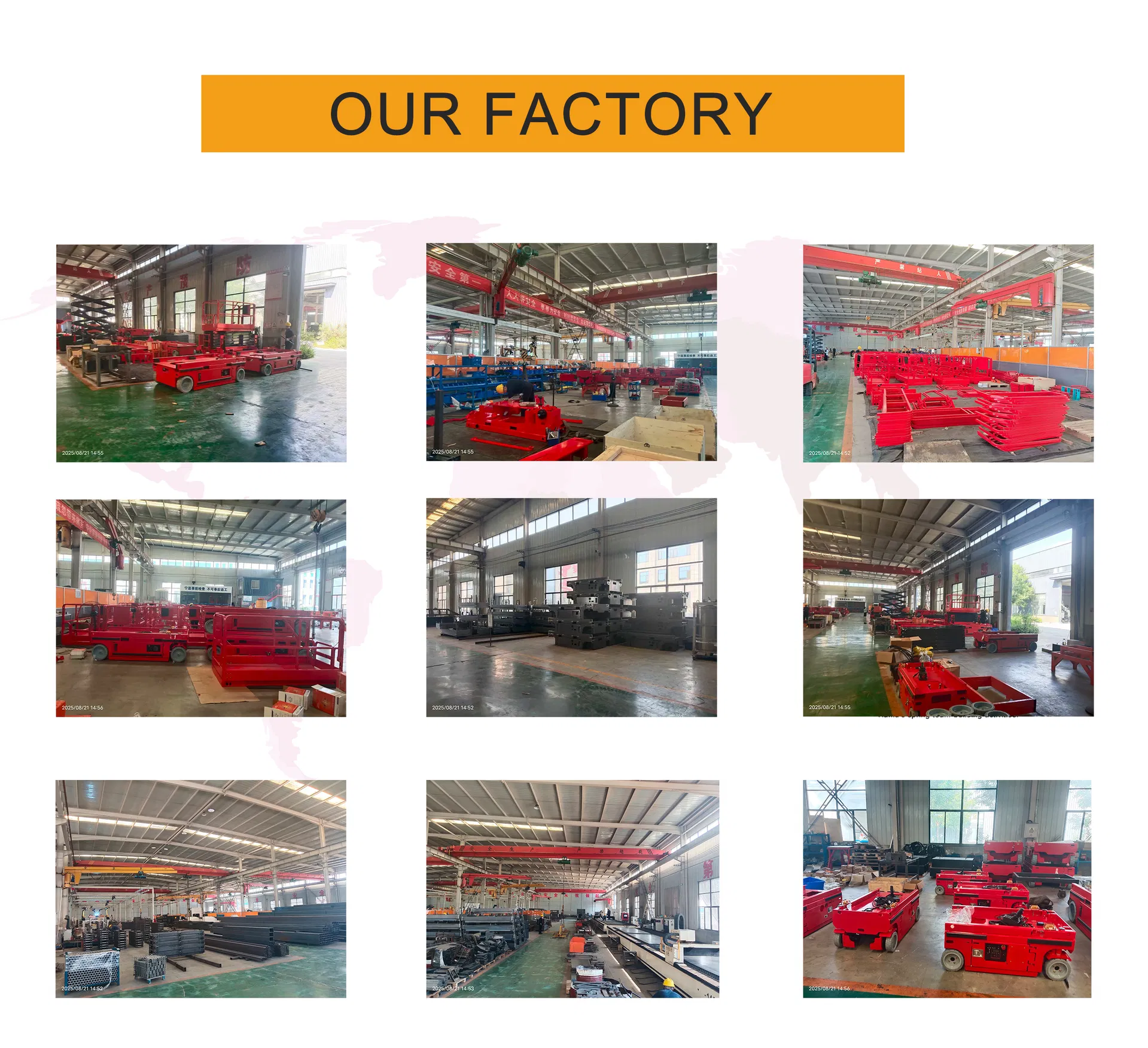

Factory Overview
Our manufacturing facility is certified with ISO 9001, CE, and SGS, exporting high-performance machinery to over 50 countries. We utilize automated production lines and robotic welding systems to ensure consistent quality and precision for every unit.
Certificates

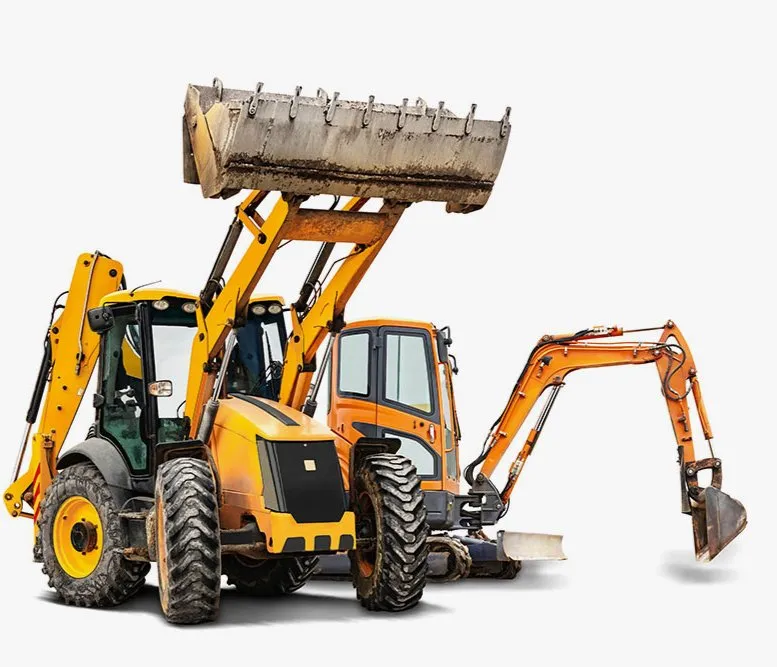

Mini Equipment

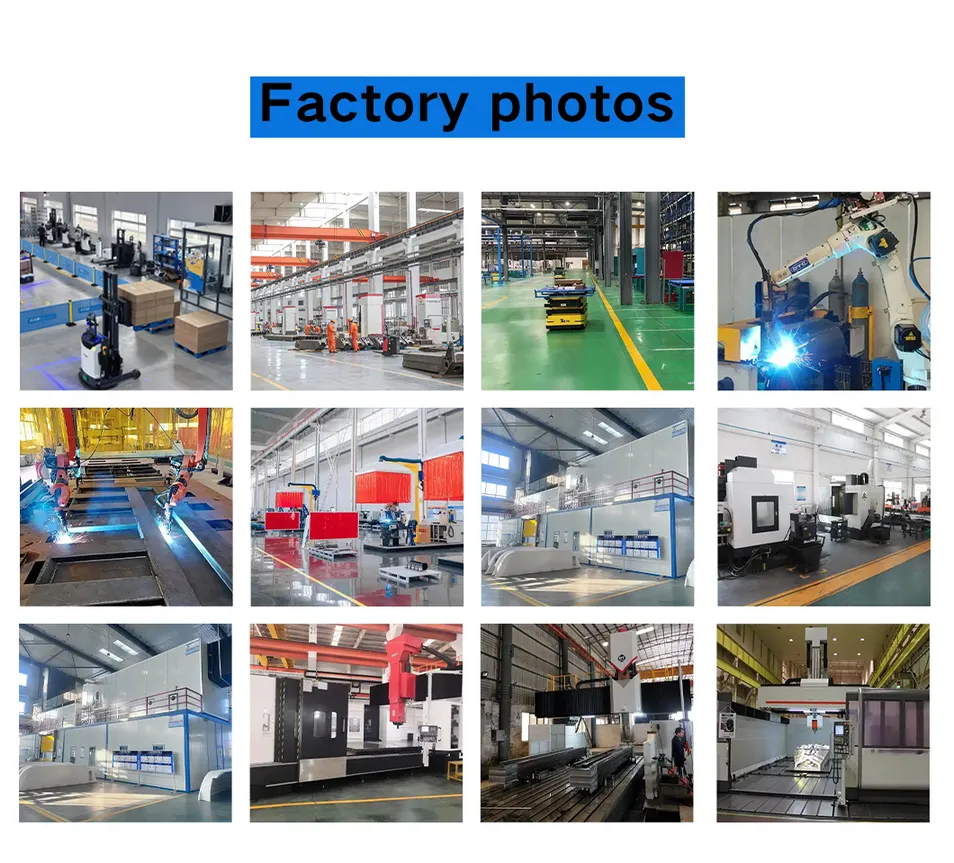

Production Line
Customer Support
Top 10 Advanced Features
1Hydraulic Pipe: High-durability pipes rated up to 25 Mpa.
2Wiring Harness: Waterproof aviation-specific material, tested for 300,000 folds.
3Axis Pin: 40cr material with QPQ treatment for superior wear and corrosion resistance.
4Mn Steel: Arm frame made of Q355B high-strength manganese steel for maximum durability.
5Motor + Brake: Renowned brand components with a 50% lower failure rate.
6Tires: Seamless solid tires from top-tier domestic manufacturers.
7Oil Cylinder: Protective covers installed to prevent debris damage.
8Robotic Welding: 100% compliance rate for weld fusion and aesthetic finish.
9Wear-resistant Sleeve: Carbon fiber material, maintenance-free for life.
10Electronic Control: New T500 system with clear fault code displays and stable operation.
Exhibition
Team Spirit
Packing & After-Sales Service
Shipping Packaging
Standard Warranty: 12 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply.
Packing: Reinforced, weather-resistant wooden crates customized for maximum protection during global transit.
Frequently Asked Questions
What is the maximum working height of this lift?
This model offers a maximum working height of up to 14 meters, with a platform height of 12 meters.
What is the load capacity?
The main platform has a capacity of 360kg, and the extension part can carry up to 138kg, supporting up to 3 occupants.
What are the payment terms and delivery time?
We accept T/T, L/C, and Western Union. Delivery is typically within 7-30 days after receiving the deposit.
What safety certifications does the equipment have?
Our machinery holds CE, ISO, EAC, EPA (USA), and CCC certifications, meeting rigorous international safety standards.
Do you provide technical support after purchase?
Yes, we offer 24/7 online technical support, including video demonstrations and remote assistance, along with a 12-month warranty.
Is customization available for colors or specific requirements?
Yes, we provide OEM and ODM manufacturing services, allowing for customization of colors, branding, and special working devices.
