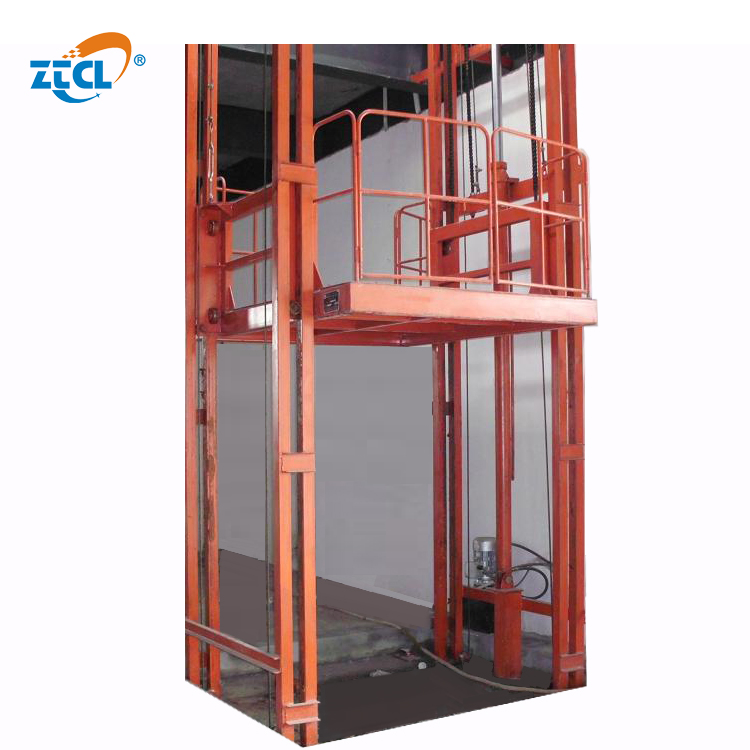

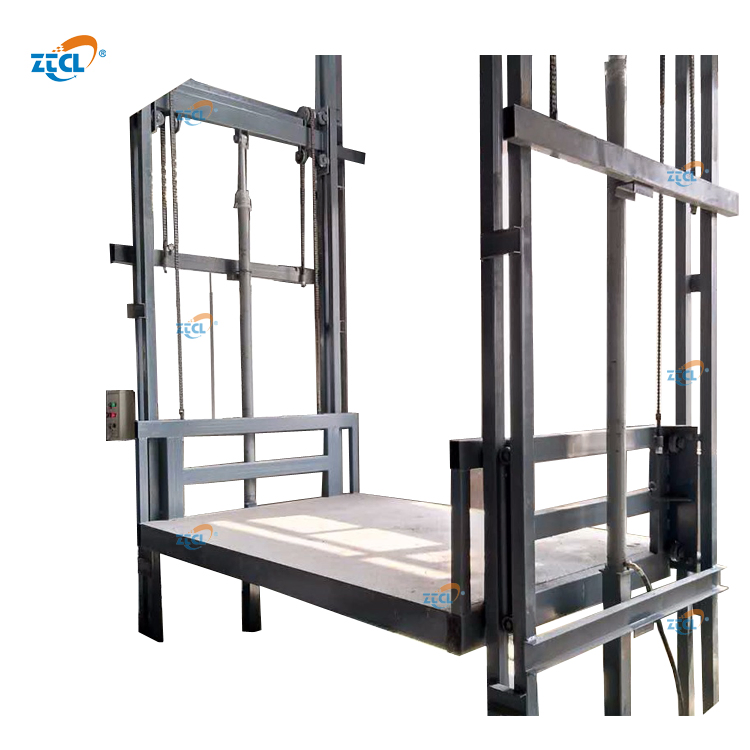

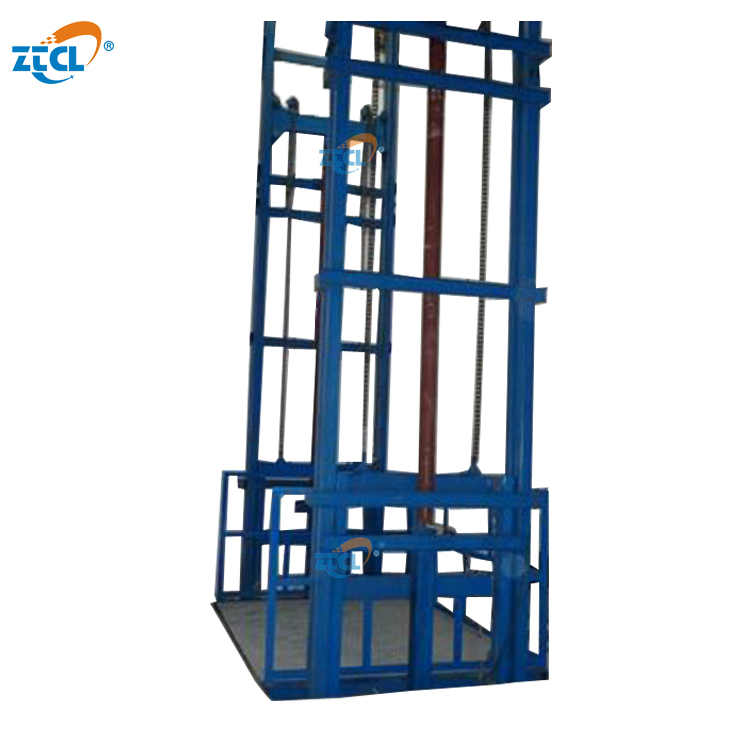

1-3 Ton Small Cargo Lift Portable Warehouse Freight Goods Hydraulic Lift Elevator Platform
1-3 Ton Small Cargo Lift Portable Warehouse Freight Goods Hydraulic Lift Elevator Platform
1-3 Ton Small Cargo Lift Portable Warehouse Freight Goods Hydraulic Lift Elevator Platform
1-3 Ton Small Cargo Lift Portable Warehouse Freight Goods Hydraulic Lift Elevator Platform
1-3 Ton Small Cargo Lift Portable Warehouse Freight Goods Hydraulic Lift Elevator Platform
1 / 5
1-3 Ton Small Cargo Lift Portable Warehouse Freight Goods Hydraulic Lift Elevator Platform
1-3 Ton Small Cargo Lift Portable Warehouse Freight Goods Hydraulic Lift Elevator Platform
1-3 Ton Small Cargo Lift Portable Warehouse Freight Goods Hydraulic Lift Elevator Platform
1-3 Ton Small Cargo Lift Portable Warehouse Freight Goods Hydraulic Lift Elevator Platform
1-3 Ton Small Cargo Lift Portable Warehouse Freight Goods Hydraulic Lift Elevator Platform

1-3 Ton Small Cargo Lift Portable Warehouse Freight Goods Hydraulic Lift Elevator Platform

Customization: Available
After-sales Service: Free Parts
Warranty: 12 Month
Send Inquiry

Product Description

i

Basic Information

Model NO.
ZTSJD
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Lift Chain
Carrying Capacity
Middle-Level
Driven Type
Hydraulic
Feature
Explosion-Proof, Insulating
Certification
GS, CE, ISO 9001
Voltage
380V
Installation
Easy Installation / Manual Provided
Overload Warning
Automatic Stop and Warning
Pit Requirement
In Pit or Fixed on Ground Directly
HS Code
8428909090
D

Product Description

Rail lifting platform is a high-performance lifting solution. As a versatile mobile lifting platform, it achieves multi-point control and interaction between floors through a safety interlock system. Driven by an integrated electric and hydraulic system, the platform moves smoothly along the tracks to convey goods between different working levels. Control panels are conveniently located at designated floors for optimal operational efficiency.
P

Product Parameters

Model Lift Height (mm) Load Capacity (kg) Platform Size (mm) Min Height (mm) Power (kw)
ZTSJD0.5-345005002000*15001502.2
ZTSJD1.0-3.5450010002000*15001503
ZTSJD2.0-4450020002000*15001503
ZTSJD3.0-4.5450030002000*15001603
ZTSJD0.5-7.575005001200*12001501.5
ZTSJD1.0-7.5750010001800*14001502.2
ZTSJD2.0-7.5750020002000*15001502.2
ZTSJD3.0-7.5750030002000*16001603
ZTSJD1.0-10.51050010001800*14001502.2
ZTSJD1.0-141400010001800*15001502.2
ZTSJD3.0-4.5450030005000*30001604
Customized lift height, loading capacity, and platform sizes available.
V

Detailed Photos

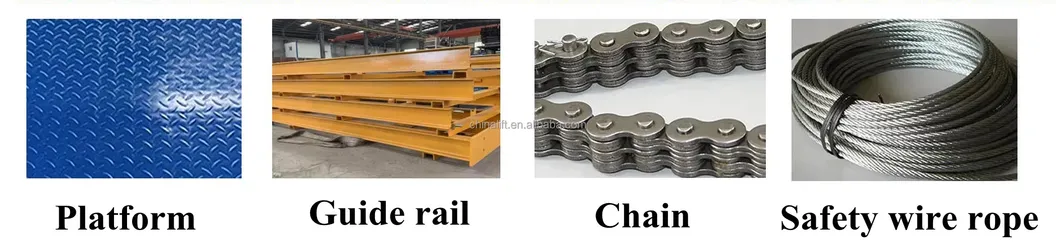

Cargo Lift Detail 1

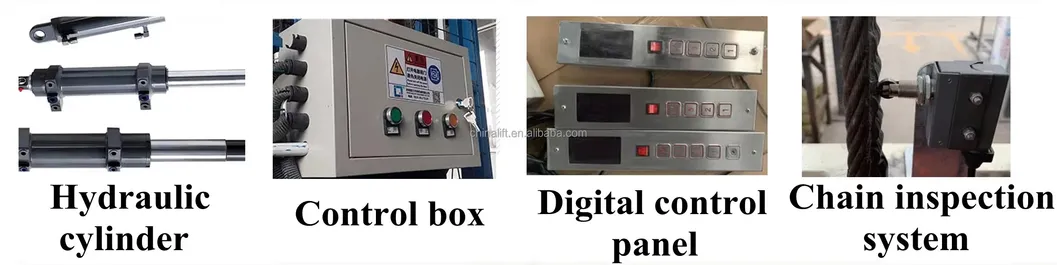

Cargo Lift Detail 2
F

Key Features

✓ Antiskid plate design to prevent slipping and ensure safety.
✓ High-standard guardrails for guaranteed operator safety.
✓ Emergency manual pump for floor access during power failure.
✓ Precision tested hydraulic drive and heavy-duty chain lift.
✓ Crane-type chain for extended service life and stability.
✓ No pit construction required, allowing flexible installation.
✓ Closed structure design which is easy to maintain and clean.
✓ Space-efficient design suitable for narrow warehouses and factories.
S

Product Showcase

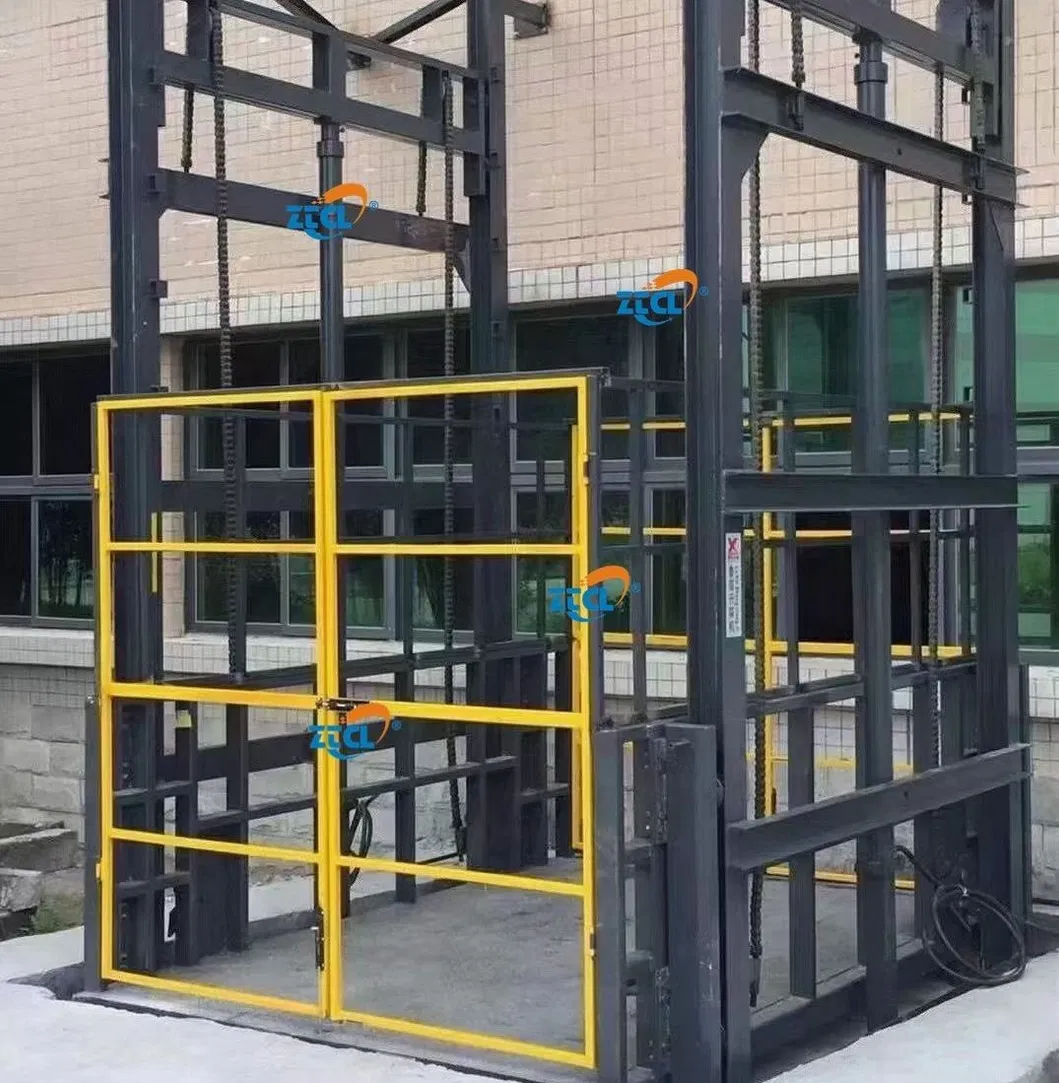

Showcase 1

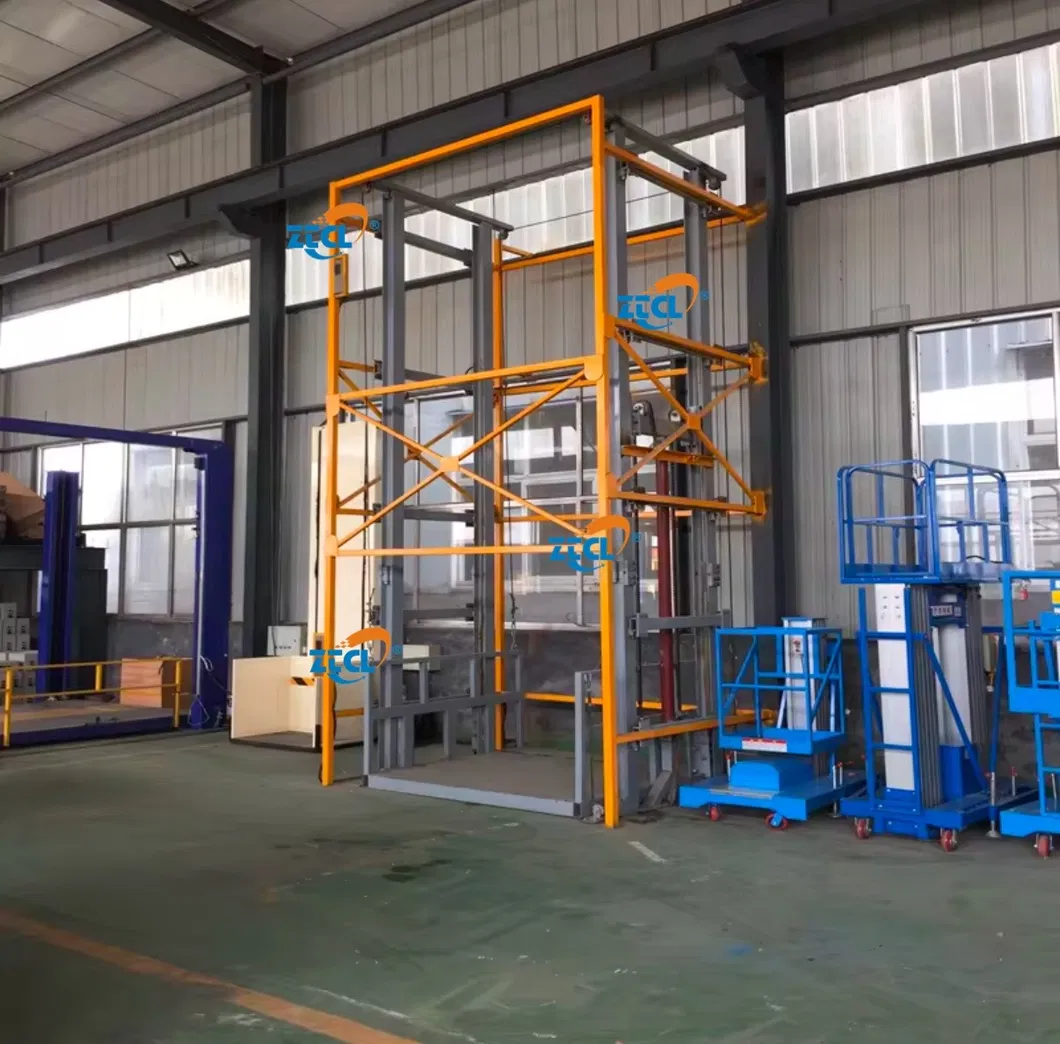

Showcase 2

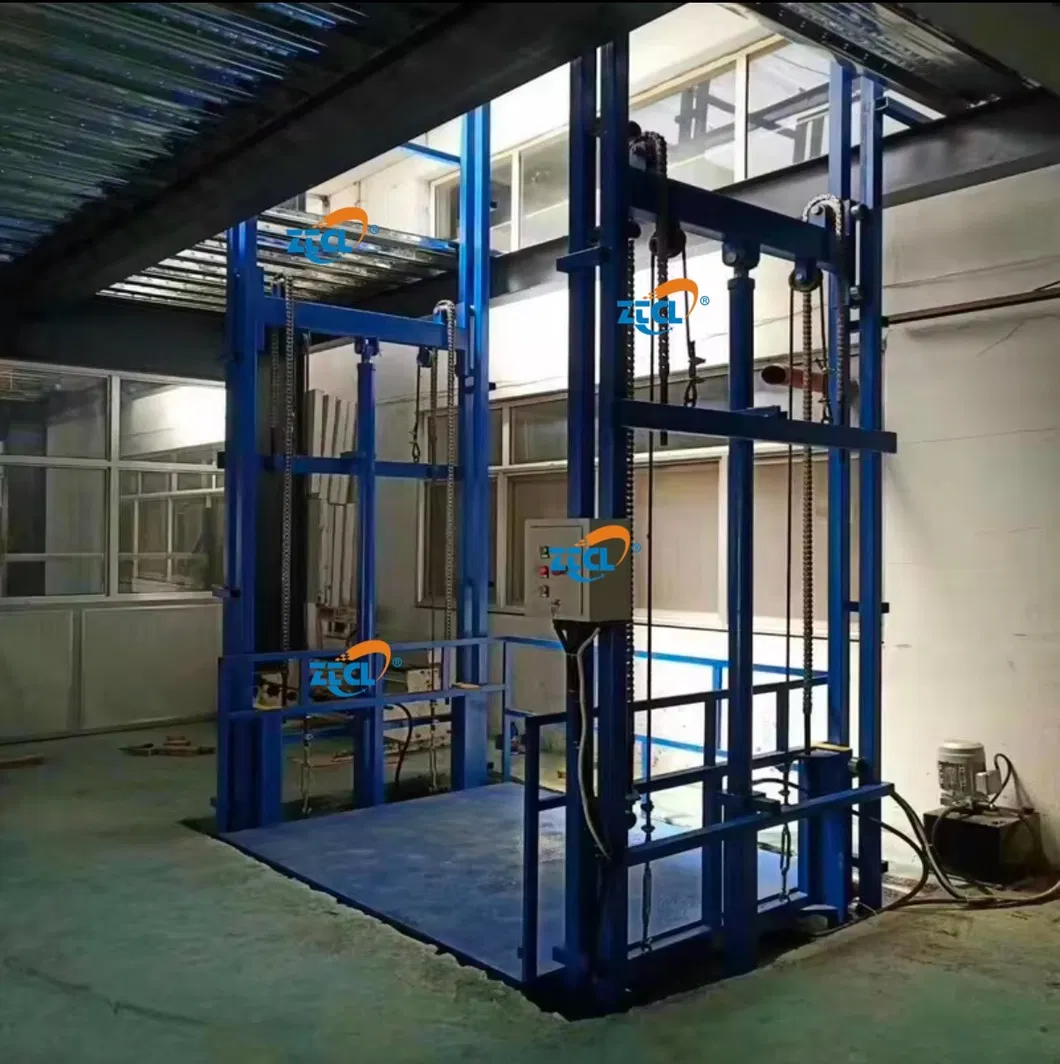

Showcase 3

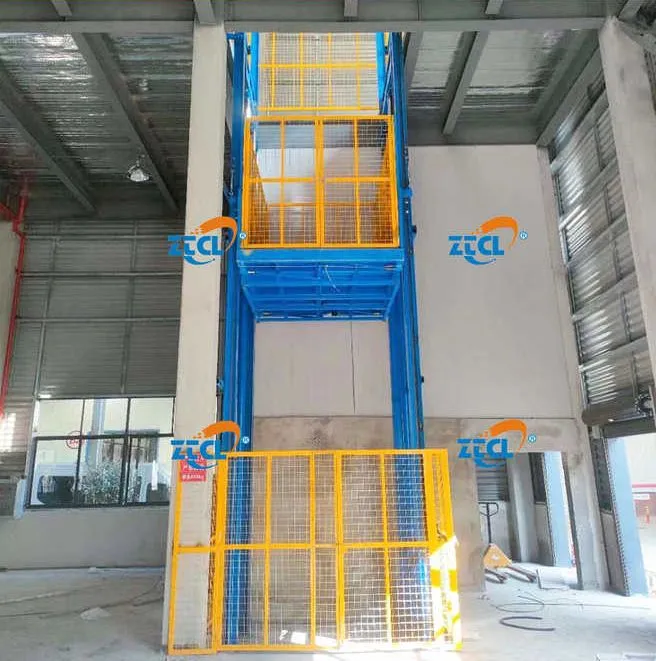

Showcase 4

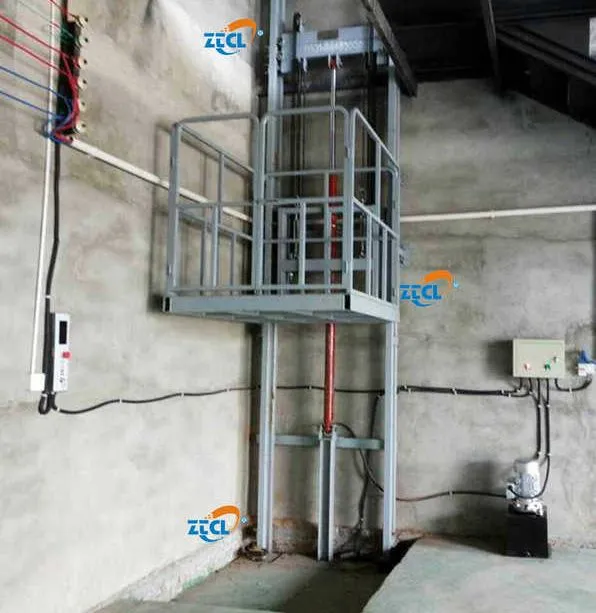

Showcase 5

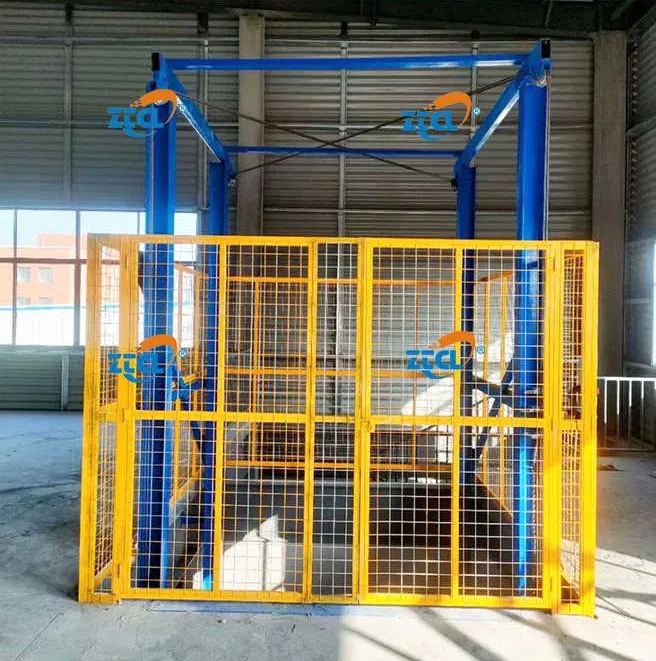

Showcase 6
Q

Frequently Asked Questions

What is the standard delivery time?
It usually takes about 10 working days after we receive the deposit.
Which payment methods do you support?
We support T/T, L/C, and West Union. T/T is the most common method used.
How do I proceed with an order for a lift?
Firstly, provide your specific requirements. Sending a photo of the intended installation site is highly recommended. Based on this, we provide a tailored quote and suggestions.
How is the lift machine transported?

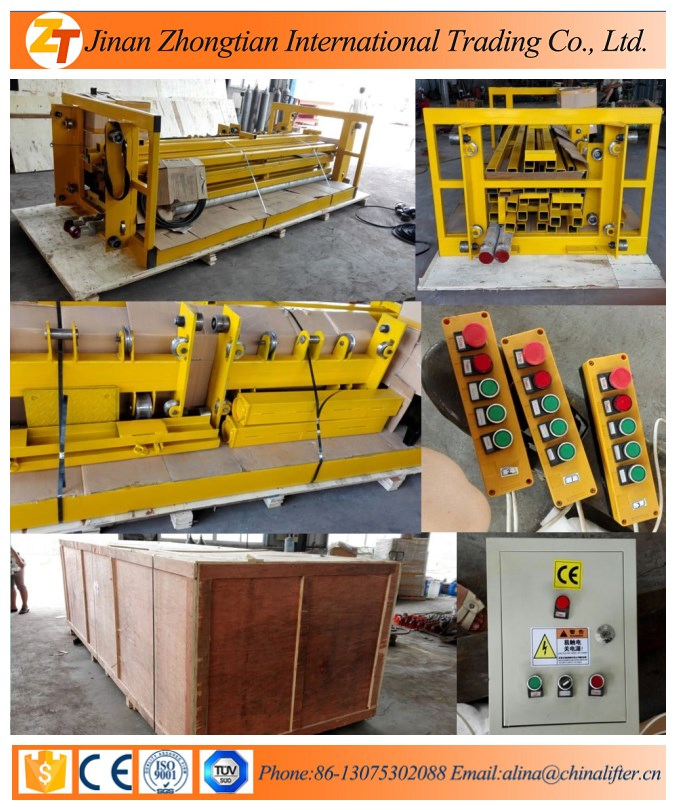

Transportation is typically handled by sea. Units are secured in plywood packaging and shipped via LCL in a 40' container.
Is it possible to customize the equipment with a LOGO?
Yes. Please inform us formally before production begins and provide a high-resolution file of your design.
What kind of after-sales service is provided?
We offer professional support for any technical issues. We aim to respond within 24 hours and can arrange the dispatch of spare parts within 48 hours.

Related Products

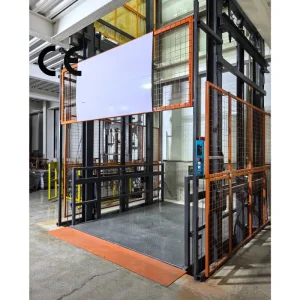

Reliable Vertical Freight Lift for Warehouse Operations and Logistics

Reliable Vertical Freight Lift for Warehouse Operations and Logistics
Goods Elevator Lift with Cheap Price Use in Warehouse & Factory Car Elevators Freight Elevator in FUJI China Factory

Goods Elevator Lift with Cheap Price Use in Warehouse & Factory Car Elevators Freight Elevator in FUJI China Factory
FUJI Cargo Elevator Freight Elevator Warehouse Cargo Lift China Factory Economic Price with Machine Room and Machine Roomless

FUJI Cargo Elevator Freight Elevator Warehouse Cargo Lift China Factory Economic Price with Machine Room and Machine Roomless
Fujivista 1000kg Cargo Lift Heavy Duty Freight Elevator for Warehouse and Industrial Building, Mrl Goods Lift with CE

Fujivista 1000kg Cargo Lift Heavy Duty Freight Elevator for Warehouse and Industrial Building, Mrl Goods Lift with CE

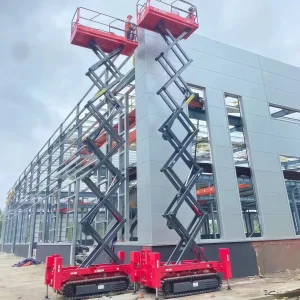

4m to 16m Electric Scissor Lift Platform for Warehouse Person Freight Cargo

4m to 16m Electric Scissor Lift Platform for Warehouse Person Freight Cargo
Energy-Saving High-Tonnage Hydraulic Vvvf Freight Lift for Warehouses

Energy-Saving High-Tonnage Hydraulic Vvvf Freight Lift for Warehouses

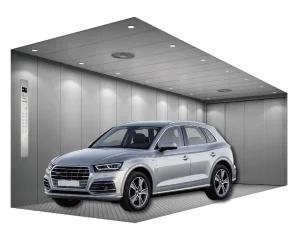

Electric Vehicals Car Elevator Freight Cargo Lift Warehouse Use

Electric Vehicals Car Elevator Freight Cargo Lift Warehouse Use

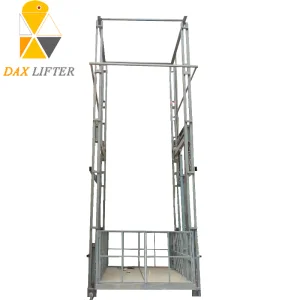

2-10 Meter Electric Elevator Lift Platform for Person Freight Small Material Cargo Lift Warehouse Household Workshop Garage

2-10 Meter Electric Elevator Lift Platform for Person Freight Small Material Cargo Lift Warehouse Household Workshop Garage

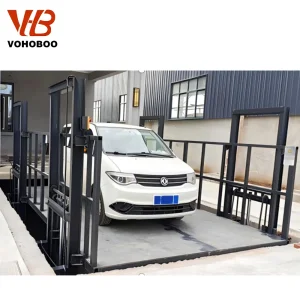

1ton 3ton 5ton Fixed Hydraulic Freight Lift with Reliable Structure for Warehouse Logistics Use
