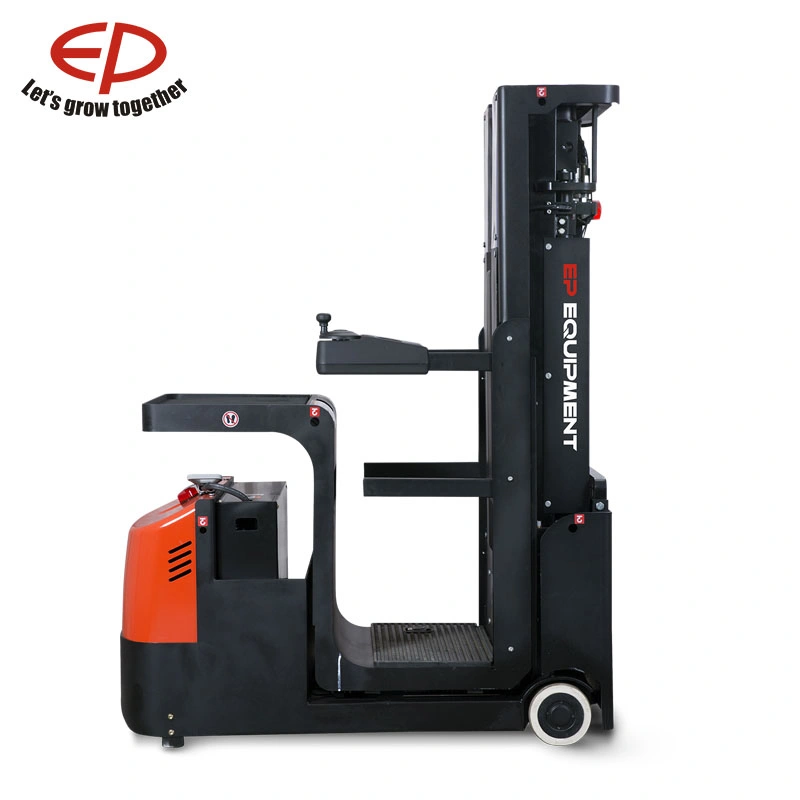

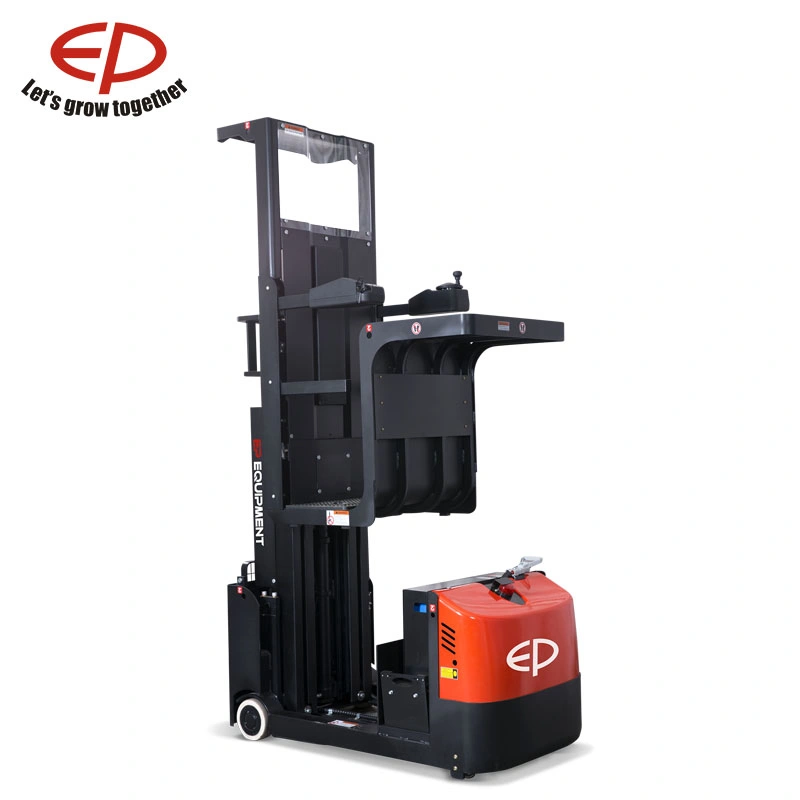

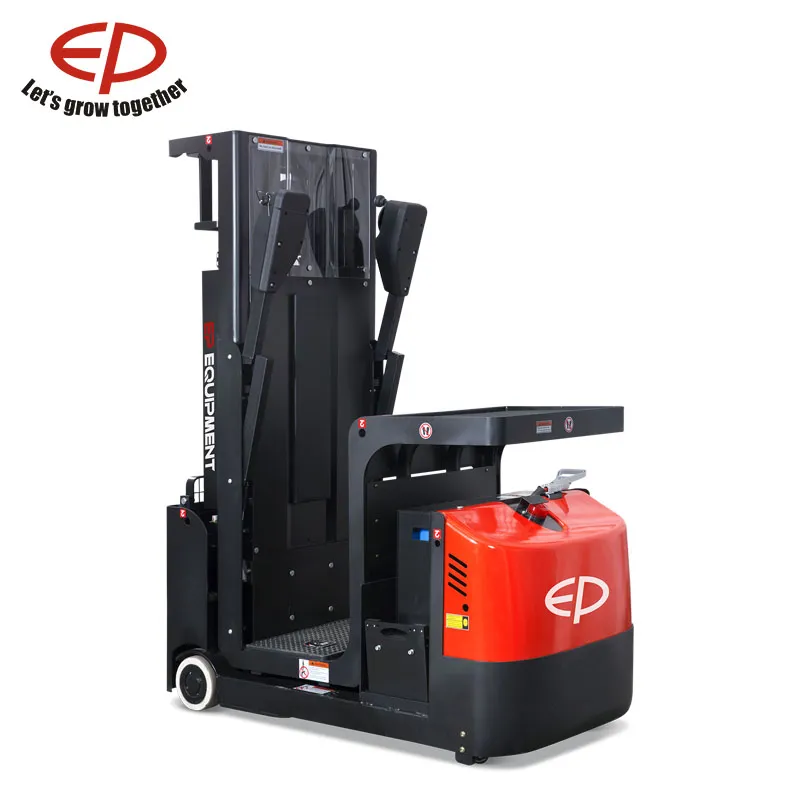

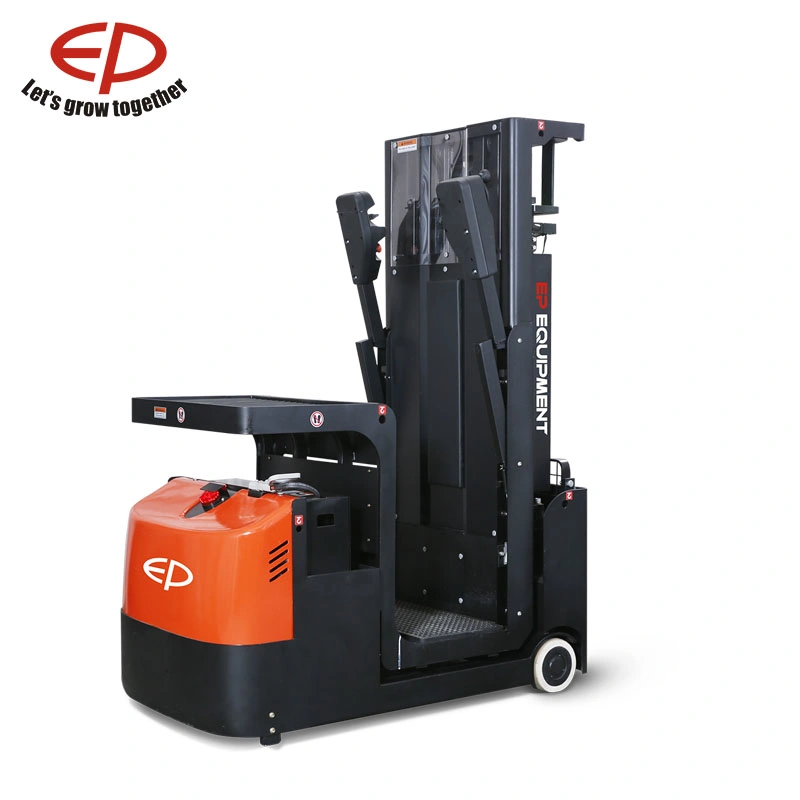

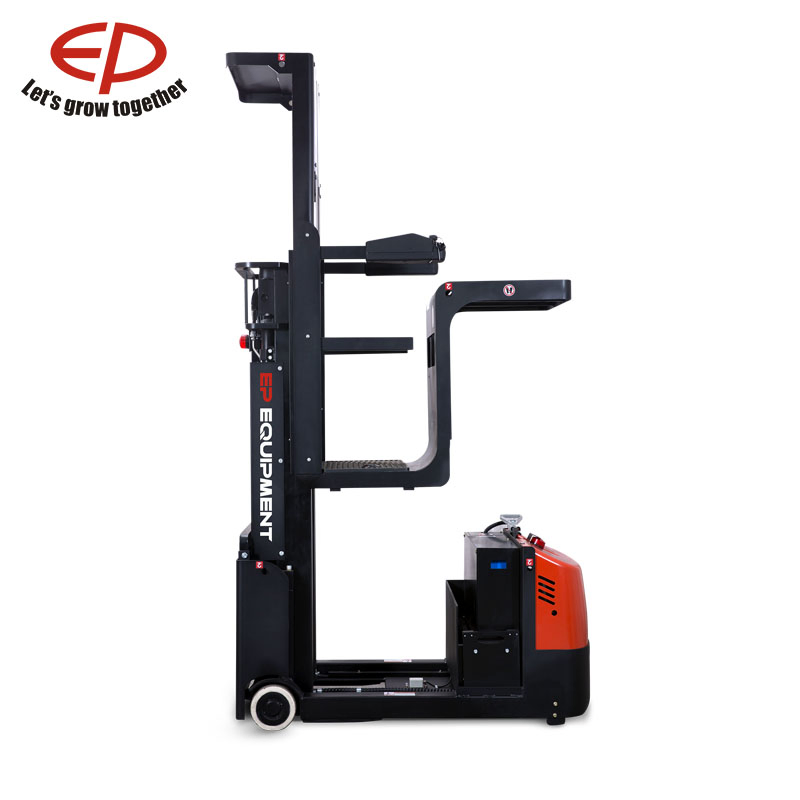

Warehouse High Volume Order Picking Medium Level Order Picker

1 / 5

Warehouse High Volume Order Picking Medium Level Order Picker

Customization:	Available
Cab Location:	Not Adjustable
Type:	Order Picker

Send Inquiry

Product Description

📊Basic Specifications

Model NO.

JX1

Power

AC Motor

Load Capacity

227kg

Fuel

Electric

Lift height

2950mm

Condition

New

Turning Radius

1385mm

Travel Speed

Up to 5.5 Km/H

Drive Motor

1.7kw

Battery

24V/224ah

Steering Type

Electronic

Service Brake

Electromagnetic

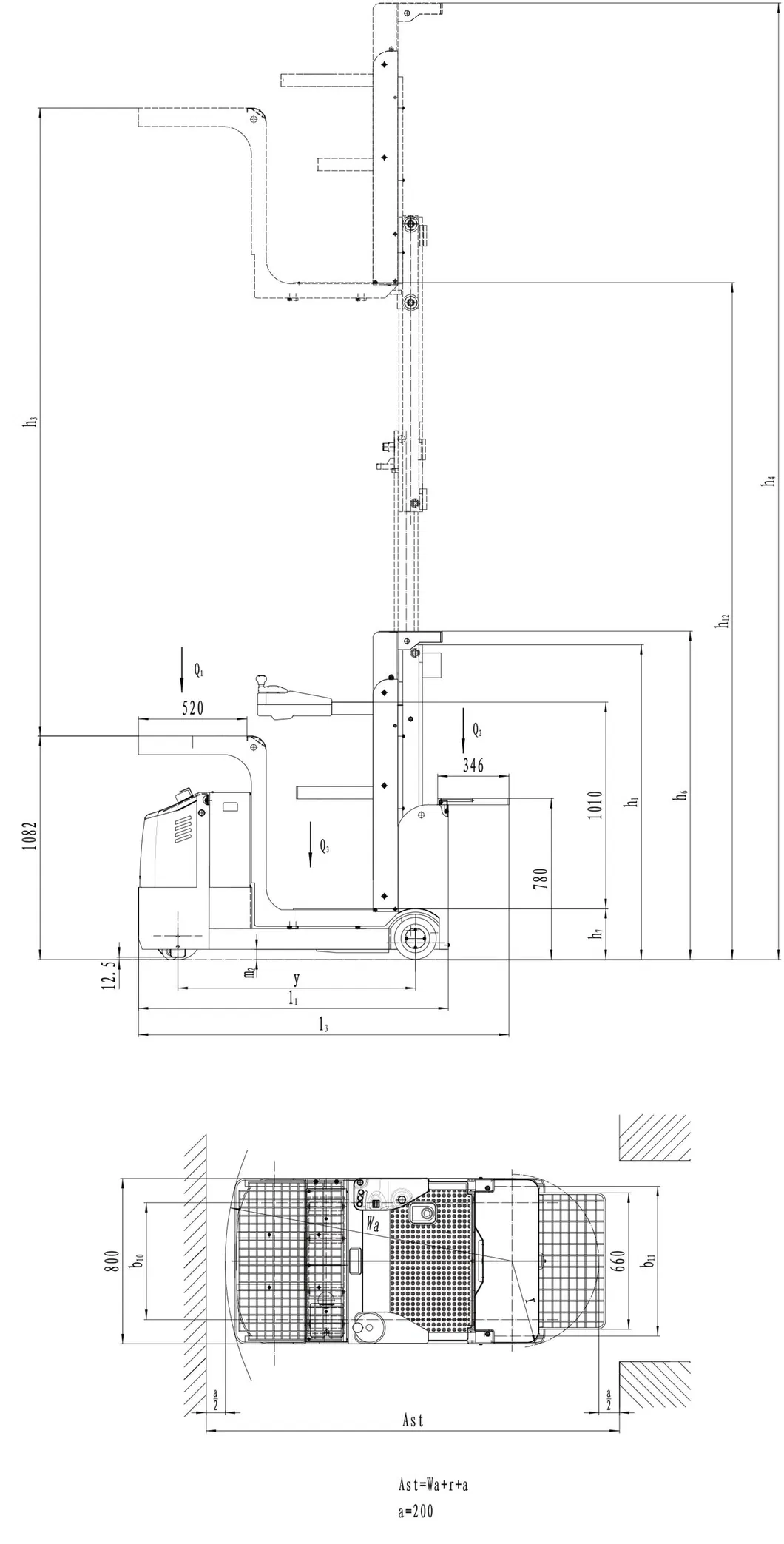

📋Technical Data Sheet

Model Designation			JX1(3200)	JX1(3600)	JX1(4100)	JX1(4880)
1.5	Rated capacity on front platform	kg	227	227	227	227
1.5	Rated capacity on behind platform	kg	137	137	137	137
2.1	Service weight (include battery)	kg	1160	1230	1340	1530
4.4	Lift height (h3)	mm	2950	3350	3850	4630
4.14	Stand height, elevated (h12)	mm	3200	3600	4100	4880
4.21	Overall width	mm	800	800	800	860
5.1	Travel speed, laden/unladen	km/h	5.5	5.5	5.5	5.5
5.2	Lifting speed, laden/unladen	m/s	0.17/0.21	0.17/0.21	0.17/0.21	0.17/0.21
6.4	Battery voltage/capacity	V/Ah	24V/224AH	24V/224AH	24V/224AH	24V/280AH

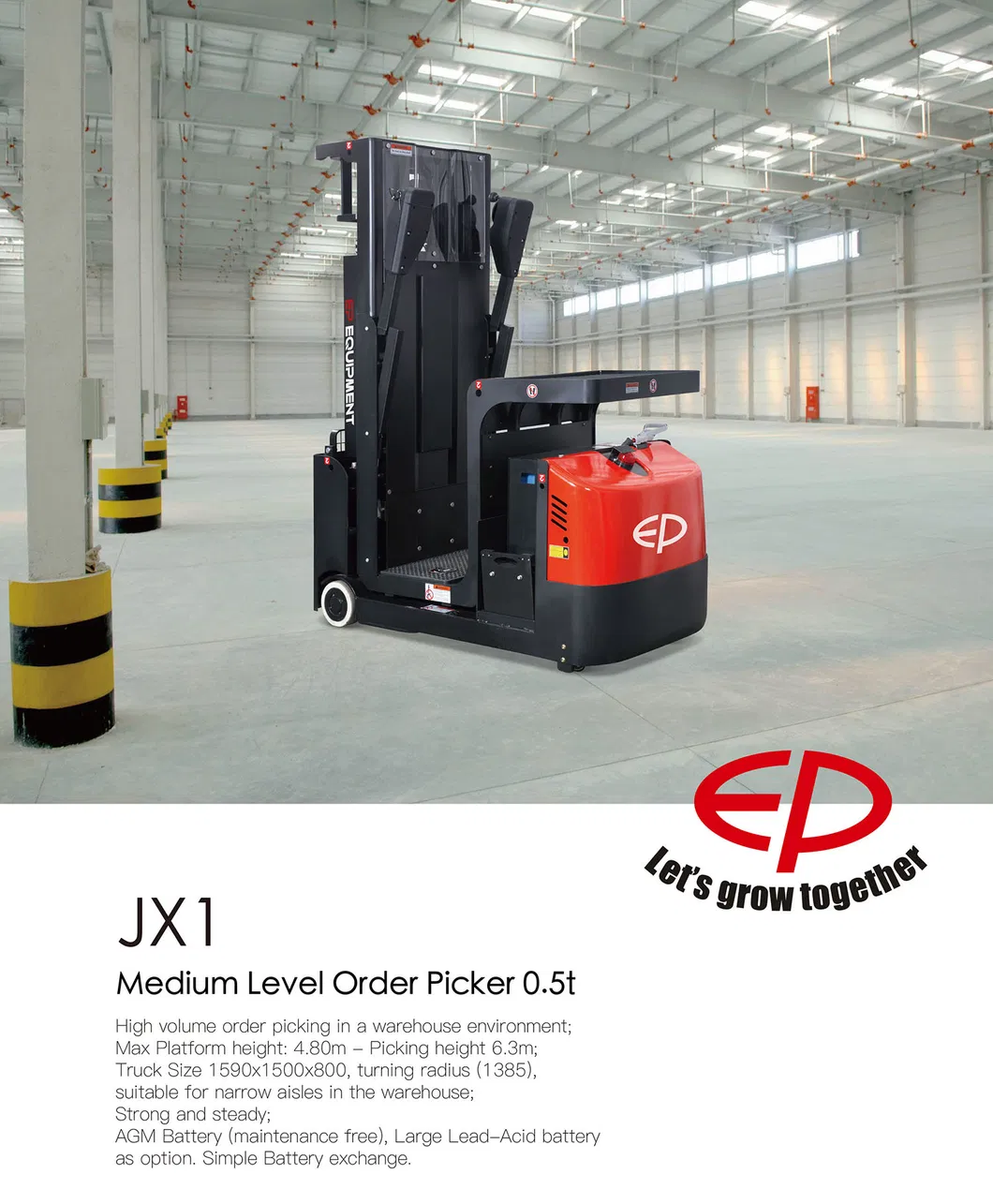

🖼️Product Gallery

❓Frequently Asked Questions

1. What is the maximum load capacity of the JX1 front platform?

The JX1 series features a rated capacity of 227kg on the front cargo platform across all standard models.

2. What type of motor and drive system does this order picker use?

The equipment is powered by a high-efficiency 1.7kw AC drive motor and a 2.2kw lift motor, utilizing a 24V electric system.

3. What is the maximum lift height available for this series?

Depending on the specific model designation, the lift height (h3) ranges from 2950mm up to 4630mm, with a maximum standing height of 4880mm for the JX1(4880) model.

4. Is the steering system manual or power-assisted?

The JX1 is equipped with an electronic steering design, providing precise and effortless control for the operator.

5. What kind of safety braking system is installed?

This model uses an electromagnetic service brake system to ensure reliable stopping power and operational safety.

6. Can the travel speed be adjusted based on the platform height?

Yes, the system automatically adjusts travel speed for safety: it ranges from 5.5 km/h at lower heights to 1 km/h when the platform is at its maximum elevation.
