Progan Lift
1 / 5

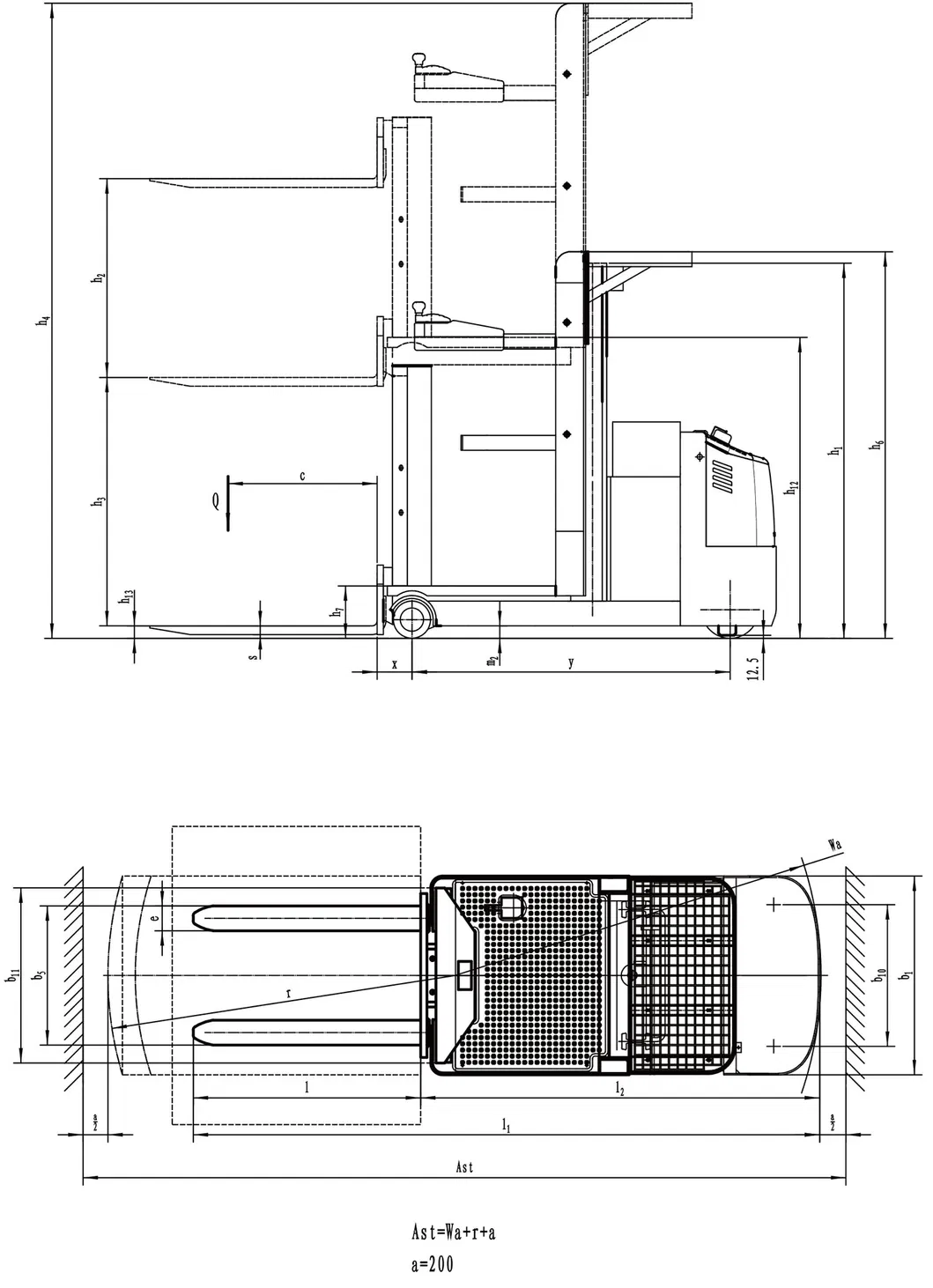

| Technical Specification Details | Unit | Data | ||
|---|---|---|---|---|
| 1.1 | Manufacturer | EP | ||
| 1.2 | Model designation | JX2-1 | ||
| 1.3 | Drive unit | Electrical | ||
| 1.5 | Rated capacity | Q | kg | 700 |
| 1.6 | Load center distance | c | mm | 600 |
| 1.9 | Wheelbase | y | mm | 1280 |
| 2.1 | Service weight | kg | 1620 | |
| 3.1 | Tyre type | PU/PU | ||
| 4.4 | Lift height | h3 | mm | 1000 |
| 4.19 | Overall length | l1 | mm | 2520 |
| 4.21 | Overall width | b1/b2 | mm | 800 |
| 5.1 | Travel speed (laden/unladen) | km/h | 8 / 3.7 | |
| 5.2 | Lifting speed (laden/unladen) | m/s | 0.13/0.16 | |
| 6.1 | Drive motor rating | kW | 2.5 | |
| 6.4 | Battery voltage/capacity | V/Ah | 24V/360Ah | |
| 10.5 | Steering type | Electronic | ||
